| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

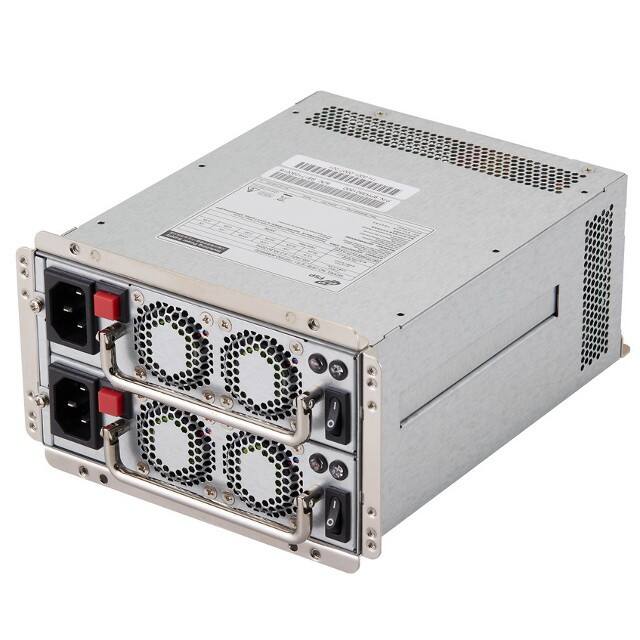

The FSP500-60MRB(S) is a 500-watt mini-redundant AC/DC power supply designed by FSP Technology Inc. It features a universal input voltage range of 90-264Vac and operates at 47-63Hz.
This power supply delivers up to 500 watts of total power and includes hot-swap capabilities, making it suitable for standard 2U server chassis. It is designed for industrial or home office environments and is an ideal choice for server, workstation, communication, and automation applications.
Key specifications include multiple output voltages (+3.3V, +5V, +12V, -12V, +5Vsb, -5V) with specific current ratings and regulation limits. The unit boasts 80 Plus Gold efficiency and meets the latest safety and EMC standards, complying with CB 62368-1 & CB 60950-1.
With dimensions of 190 x 150 x 84 mm, it is designed for rack mounting. The operating temperature range is 0°C to 50°C, and it is rated for operation at altitudes up to 5,000 meters above sea level.
0°C to 50°C.
90-264Vac.
+3.3V at 20A, +5V at 20A, +12V at 40A, -12V at 0.5A, +5Vsb at 3.0A, -5V at 0.3A.
500W.
80 Plus Gold.
Rack Mount.
Yes, PMBus V1.2.
