| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

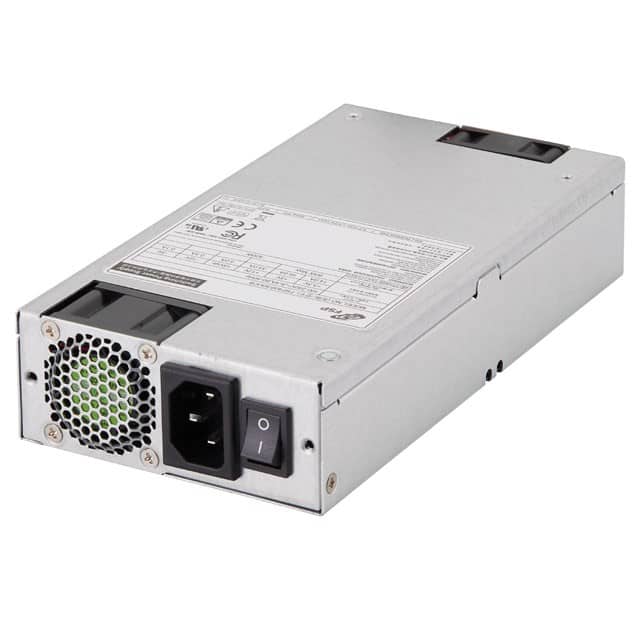

The FSP500-50UCB is a standard 1U form factor switching power supply designed for industrial environments. It provides a total power capacity of up to 500 Watts.
This power supply is suitable for applications such as IPC controllers, workstations, communication systems, and other automation tasks. It features a universal input voltage range of 90-264Vac and operates with 80 Plus Bronze efficiency.
Key electrical specifications include multiple output voltages (+3.3V, +5V, +12V, -12V, +5Vsb, -5V) with specific current ratings and regulation limits. The power supply also incorporates over-current protection (OCP) and over-voltage protection (OVP).
Mechanically, the unit measures 190 x 100 x 40.5mm and is designed for chassis mounting. It operates within a temperature range of 0°C to 50°C and is designed for altitudes up to 5,000 meters.
The FSP500-50UCB has a maximum output power of 500W.
The input voltage range is 90-264Vac.
The FSP500-50UCB has an efficiency rating of 80 Plus Bronze.
The dimensions are 190 x 100 x 40.5mm.
The operating temperature range is 0°C to 50°C.
Yes, the FSP500-50UCB has over-current protection.
It is certified to CB 62368-1 and CB 60950-1 standards.
