| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

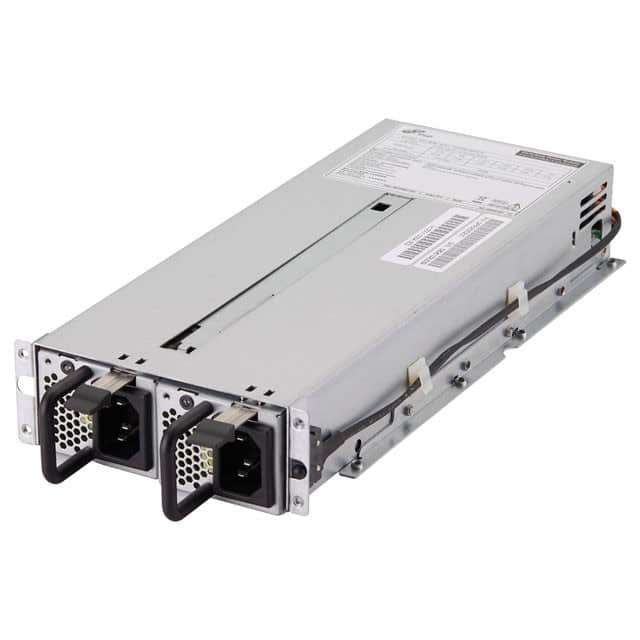

The FSP500-50RDB is a standard 1U redundant switching power supply designed by FSP Technology Inc. It provides a total power capacity of up to 500 Watts, making it suitable for industrial environments, IPC controllers, workstations, communication systems, and automation applications.
This power supply features a wide input voltage range of 90-264Vac and operates at 47-63Hz. It boasts 80 Plus Bronze efficiency and includes protections such as Over Current Protection (OCP), Over Temperature Protection (OTP), and Over Voltage Protection (OVP). The unit is designed for high reliability and low ripple and noise.
With dimensions of 260 x 106 x 41.3 mm, it is a compact solution for space-constrained applications. The operating temperature range is 0°C to 50°C, with storage temperatures from -20°C to +80°C. It is certified to CB 62368-1 and CB 60950-1 standards, meeting various global regulations.
The maximum total DC output power should not exceed 500W.
The FSP500-50RDB has an efficiency of 80 Plus Bronze.
The operating temperature range is 0°C to 50°C.
It is certified to CB 62368-1 and CB 60950-1 standards.
It includes Over Current Protection, Over Temperature Protection, Over Voltage Protection, and short circuit protection on all outputs.
