| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

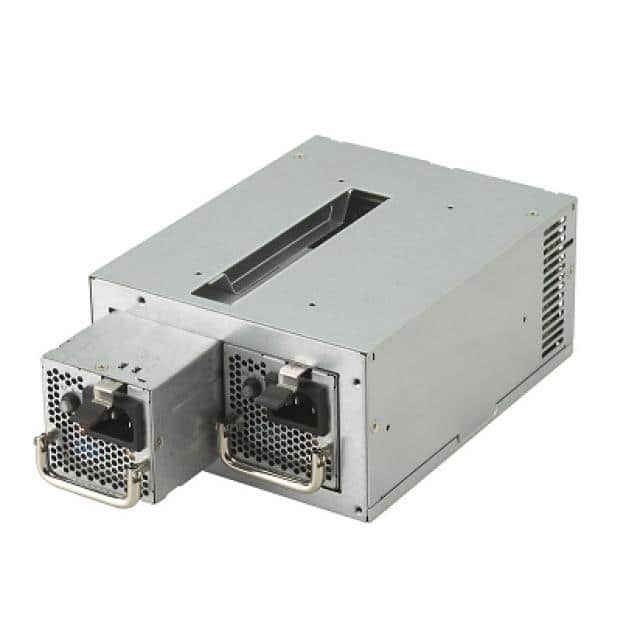

The FSP500-50RAB is a versatile 500W PS2 redundant power supply designed by FSP Technology Inc. It features a mechanism similar to the ATX form factor and includes hot-swap capabilities, making it suitable for standard tower server chassis and industrial or home office environments.
This power supply delivers up to 500 Watts of total power with an 80 Plus Gold efficiency rating. It supports a wide input voltage range of 90-264Vac and a frequency of 47-63Hz. Key electrical specifications include multiple output voltages (+3.3V, +5V, +12V, -12V, +5Vsb) with specific current ratings and regulation limits.
The FSP500-50RAB is designed for high reliability and compliance with the latest safety and EMC standards, including CB 62368-1 and CB 60950-1 certifications. It operates within a temperature range of 0°C to 50°C and can function at altitudes up to 5,000 meters. Its dimensions are 190 x 150 x 86 mm.
Ideal for server, workstation, communication, and automation applications, this power supply also offers features like Over Current Protection (OCP), Over Temperature Protection (OTP), and Over Voltage Protection (OVP).
90-264Vac, 47-63Hz.
0°C to 50°C.
Rack mount (front end).
672W.
80 Plus Gold.
100,000 hours at 25°C full load.
CB, CE, cULus, FCC, GS, TUV.
