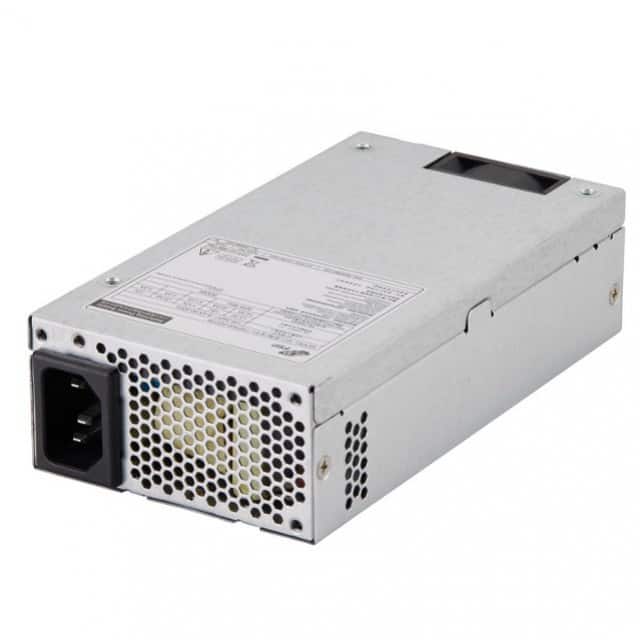

The FSP500-50FDB is a 500 Watt Flex ATX/IPC power supply designed for demanding environments such as 1U server chassis, NAS systems, and industrial automation.
This power supply features a wide AC input range of 90-264 VAC and achieves 80 PLUS Bronze efficiency, delivering reliable and efficient power. It includes Active PFC and offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), and short-circuit.
With dimensions of 150 x 81.5 x 40.5 mm, it is suitable for compact applications. The power supply operates within a temperature range of 0°C to 50°C and has a Mean Time Between Failures (MTBF) of 100,000 hours at 25°C. It is designed for 5,000 meters above sea level operation.
The FSP500-50FDB complies with safety standards such as CB 62368-1 and CB 60950-1, and holds certifications including RoHS, CE, UL, WEEE, and UKCA, making it suitable for regulated applications.
0°C to 50°C
Flex ATX
90-264 VAC
80 Plus Gold
Over current, over voltage, over temperature, and short circuit protection
Servers, workstations, IPC controllers, storage systems, and industrial automation
