| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

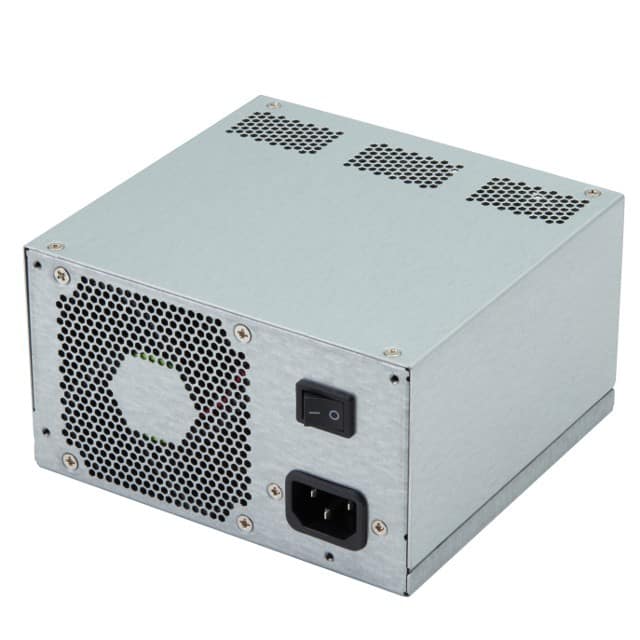

The FSP400-70AGGBM(M) is an industrial-grade ATX AC/DC converter from FSP Technology Inc., delivering a total power capacity of 400 Watts. It features an 80 Plus Gold efficiency rating and universal input voltage range (90-264Vac).
Designed for demanding applications, this power supply includes features like easy-swap cable management, high reliability, and low ripple and noise. It operates within a wide temperature range of 0°C to 50°C and is designed to function at altitudes up to 5,000 meters.
Key electrical specifications include multiple output rails (+3.3V, +5V, +12V1, +12V2, -12V, +5Vsb) with specific current ratings and regulation limits. Protection features such as Over Current, Over Temperature, and Over Voltage Protection are integrated for enhanced safety and system stability.
The unit has dimensions of 140 x 150 x 86mm and is designed for chassis mounting. It complies with safety standards including CB 62368-1 and CB 60950-1, making it a reliable choice for server, workstation, communication, and automation applications.
The input voltage range is 90-264 Vac with a frequency of 47-63 Hz.
The operating temperature range is 0°C to 50°C.
The converter provides 400W total power, with a combined +3.3V and +5V output limited to 103W.
It is rated 80 Plus Gold.
Over Current Protection, Over Voltage Protection, and Over Temperature Protection.
The dimensions are 140 mm x 150 mm x 86 mm (5.51 x 5.91 x 3.39 inches).
It is certified to CB, CCC, CE, cULus, FCC, GS, and TUV standards.
