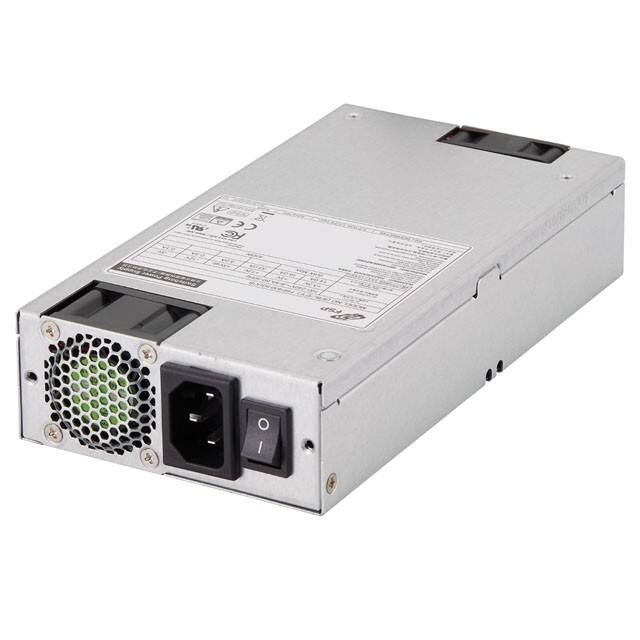

The FSP400-50UCB from FSP Technology Inc. is a standard 1U form factor switching power supply designed for industrial environments. It offers a total power capacity of 400 Watts and features universal input voltage ranging from 90-264Vac with a frequency of 47-63Hz.
This power supply provides multiple output voltages including +3.3V, +5V, +12V, -12V, +5Vsb, and -5V, with maximum currents specified for each. It boasts 80 Plus Bronze efficiency and includes protections such as Over Current and Over Voltage Protection. The unit is designed for high reliability and low ripple and noise.
With dimensions of 190 x 100 x 40.5 mm, it is suitable for chassis mounting. The operating temperature range is 0°C to 50°C. The FSP400-50UCB complies with safety standards like CB 62368-1 and CB 60950-1, making it a suitable choice for IPC controllers, workstations, communication systems, and other automation applications.
It is designed to operate at altitudes up to 5,000 meters above sea level. The power supply also meets various regulations worldwide, ensuring broad applicability.
The input voltage range is 90-264Vac.
Outputs: +3.3V/14A, +5V/16A, +12V/33A, -12V/0.3A, +5Vsb/3A, -5V/0.1A.
The operating temperature range is 0°C to 50°C.
The efficiency rating is 80 Plus Bronze.
It includes over current protection and over voltage protection.
MTBF is 100,000 hours at 25°C under maximum output load.
Dimensions are 190 x 100 x 40.5 mm.
