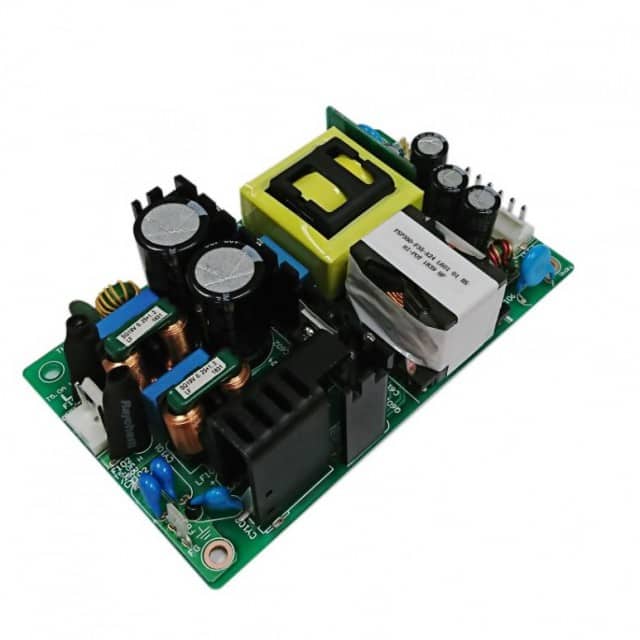

The FSP350-F35-A24 is an AC/DC converter from FSP Technology Inc. designed to deliver a regulated 24V DC output at up to 199W. It accepts a universal input voltage range of 90-264 VAC at 47-63 Hz, with maximum input currents of 3.7 A RMS at 115 VAC and 1.76 A RMS at 230 VAC. The converter achieves a typical efficiency of 93% and a power factor of 0.98 minimum at 115VAC full load. Standby power consumption is less than 0.5W at 0.2W load condition.
Electrical performance includes a hold-up time of 35 ms minimum at 115VAC and 200W load, line regulation of ±0.5% maximum at full load, and inrush current of 60A at 115VAC cold start. The unit features 3000 VAC isolation between input and output, and 1500 VAC to ground. MTBF is rated at 400,000 hours minimum at full load and 25°C ambient, calculated per Telcordia SR-332. The converter meets Class B conducted and radiated EMI limits per EN55032 and FCC.
The converter is suitable for a wide range of applications requiring a reliable 24V DC power source. It is designed for operation at altitudes up to 5000 meters. The product is an enclosed AC/DC converter module, though specific dimensions and mounting details are not provided in the available data.
90-264 VAC.
24V DC at 199W.
93% typical.
35 ms minimum at 115VAC and 200W load.
400,000 hours minimum at full load and 25°C ambient.
Class B conducted and radiated per EN55032 and FCC.
3.7 A RMS at 115VAC, 1.76 A RMS at 230VAC.
