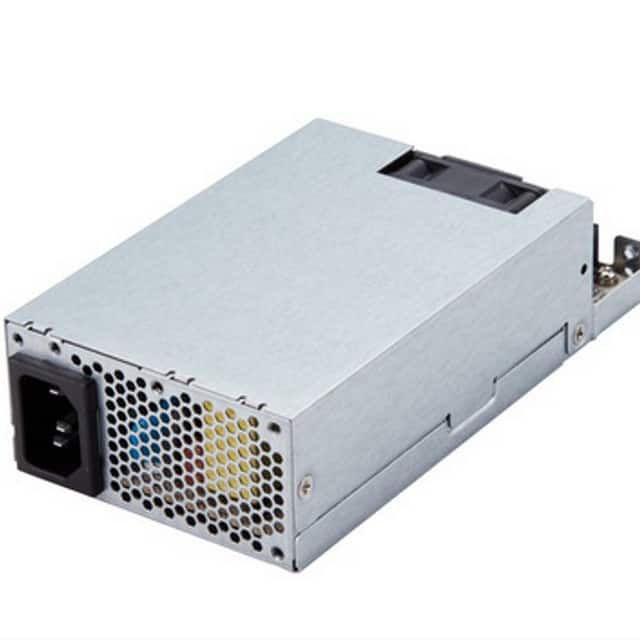

The FSP350-57FCB is a 350W AC/DC converter manufactured by FSP Technology Inc. It features 80 Plus Gold efficiency, ensuring reduced energy loss and lower operating costs. The converter accepts a universal AC input voltage range of 90-264Vac at 47-63Hz, with input currents of 6A at 115Vac and 3A at 230Vac.
Output specifications include +3.3V at 14A, +5V at 16A, and +12V at 29A, providing a combined power capacity of 350W. The unit has a hold-up time of ≥10ms at 115V/60Hz and ≥12ms at 230V/50Hz, supporting reliable operation during brief input interruptions.
Mechanically, the converter measures 150 x 81.5 x 40.5mm (5.9 x 3.21 x 1.59 inches). It operates within a working temperature of 50°C and can be stored between -20°C and +80°C. The humidity tolerance is 85% RH non-condensing during operation and 95% RH non-condensing in storage. The device is rated for operation at altitudes up to 5,000 meters above sea level.
The FSP350-57FCB achieves a mean time between failures (MTBF) of 100,000 hours at 25°C under maximum output load, demonstrating long-term reliability for continuous use.
The working temperature is 50°C, and the storage temperature range is -20°C to +80°C.
The input voltage range is 90-264Vac.
The total power capacity is 350W.
It has an 80 Plus Gold efficiency rating.
The dimensions are 150 x 81.5 x 40.5mm (5.9 x 3.21 x 1.59 inches).
The MTBF is 100,000 hours at 25°C under maximum output load.
The hold-up time is ≥10ms at 115V/60Hz and ≥12ms at 230V/50Hz.
