| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

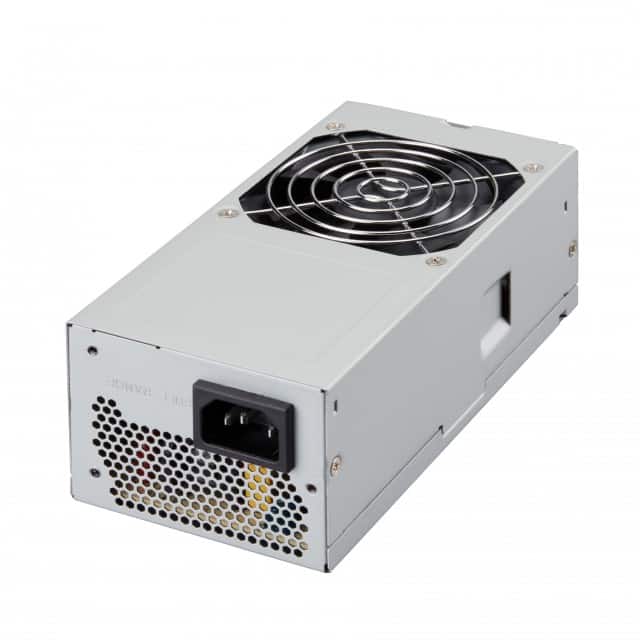

The FSP350-50TAC is a 484W AC/DC converter manufactured by FSP Technology Inc. It accepts a universal input voltage range of 90-264Vac at 50-60Hz, with an input current of 4A max at 115Vac and 2A max at 230Vac. The converter achieves an efficiency rating of 80 Plus Bronze. It provides multiple output voltages: 3.3V, 5V, and ±12V, as indicated in the product description.
The converter features a hold-up time of at least 16ms at 80% load for both 115Vac and 230Vac conditions. It operates over a temperature range of 0°C to 50°C and can be stored between -20°C and +80°C. The operating humidity is up to 90%. The unit is designed for use at altitudes up to 2,000 meters above sea level.
Mechanically, the converter measures 175.0mm (6.89 inches) in length, 85.0mm (3.35 inches) in width, and 70.0mm (2.76 inches) in height. It is suitable for integration into various power systems requiring a regulated multi-rail DC output from AC mains.
The input voltage range is 90-264Vac.
The operating temperature range is 0°C to 50°C.
The efficiency rating is 80 Plus Bronze.
The hold-up time is at least 16ms at 80% load for both 115Vac and 230Vac.
The dimensions are 175.0mm length, 85.0mm width, and 70.0mm height (6.89", 3.35", 2.76").
The input frequency range is 50-60Hz.
The storage temperature range is -20°C to +80°C.
