| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

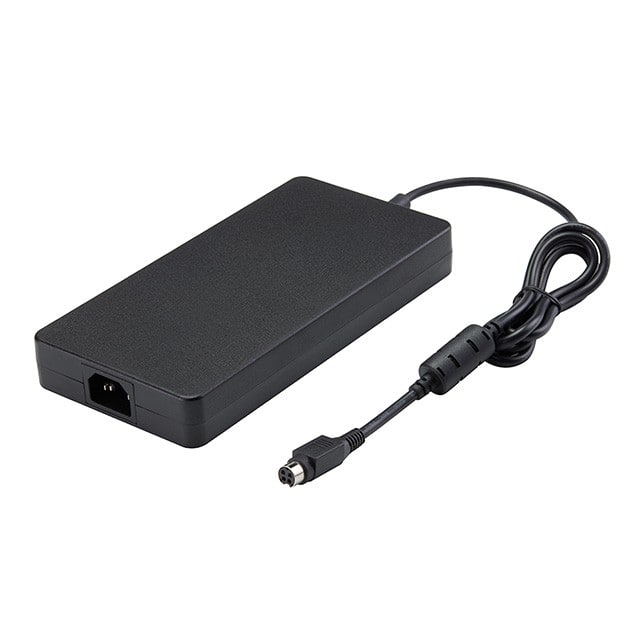

This FSP330-AJAN3 AC to DC desktop adapter from FSP Technology Inc. is designed for applications requiring high wattage demands, such as IPC systems, embedded systems, printers, monitors, and POS systems.
It features a 330W total output power and operates within a wide input voltage range of 90 to 264 VAC. The adapter meets key efficiency standards including DOE Level VI and Code of Conduct Version 5 Tier 2. Safety and compliance are supported by certifications such as IEC 62368-1 and IEC 60950-1.
The adapter has a compact desktop form factor (Class I) with dimensions of 200.0mm x 100.0mm x 27.0mm. It utilizes an IEC 320-C14 input connector and a 4-pin Power DIN output connector. The operating temperature range is 0°C to 70°C.
Additional features include over-current, over-temperature, and over-voltage protection, along with a power factor correction circuit. EMC performance meets Class B standards for conducted and radiated emissions per EN55032 and FCC Part 15B.
The input voltage range is 90 to 264 VAC.
It provides 19.5V DC output at 330W.
It meets Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is 0°C to 70°C.
Dimensions are 200.0mm x 100.0mm x 27.0mm. The input connector is IEC 320-C14.
It complies with 60950-1 and 62368-1 safety standards.
The MTBF is 300,000 hours at 25°C per SR332 at full load.
