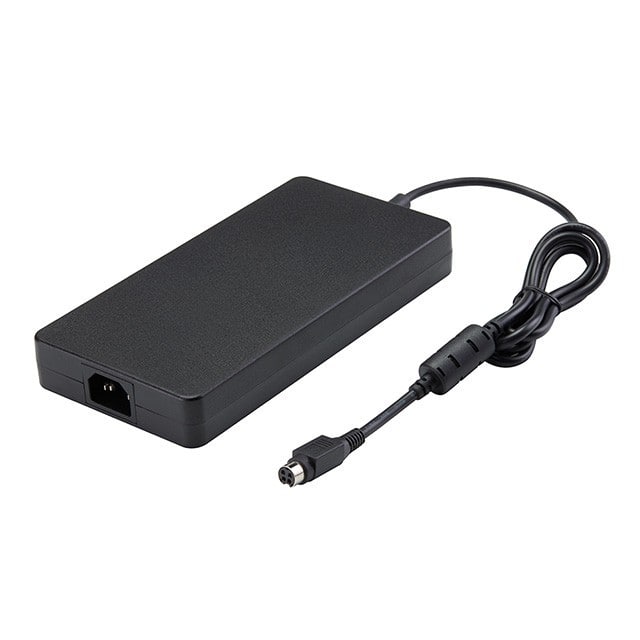

The FSP330-AAAN3 is a 330-watt AC to DC adapter designed for ITE applications. It operates with an input voltage range of 90 to 264 VAC and provides a stable 24V output.
Key features include over-current, over-temperature, and over-voltage protection, ensuring reliable operation. The adapter meets various international standards and efficiency requirements, including DOE Level VI and Code of Conduct Version 5 Tier 2.
With a compact desktop form factor (Class I) and an IEC 320-C14 input connector, it is suitable for systems with high wattage demands such as IPC systems, embedded systems, printers, monitors, charging systems, and POS systems. The unit also meets strict EMC performance standards, including CISPR32 EN55032 Class B and FCC Part 15B Class B emission limits.
The FSP330-AAAN3 adapter has an output voltage of 24V.
The FSP330-AAAN3 adapter has a maximum output power of 330W.
The FSP330-AAAN3 adapter accepts a universal input voltage range of 90-264 VAC.
The FSP330-AAAN3 operates within a temperature range of 0°C to 70°C.
Yes, the FSP330-AAAN3 meets Energy Efficiency DOE Level VI and Code of Conduct Version 5 Tier 2 standards.
The FSP330-AAAN3 includes over-voltage, short circuit, over-current, over-temperature, and brown-out protection.
The FSP330-AAAN3 is certified to IEC 62368-1 and CB 60950-1, and meets USA EISA 2007 requirements. It also holds approvals from CB, CE, CCC, cULus, FCC, GS, TUV, and VCCI.
