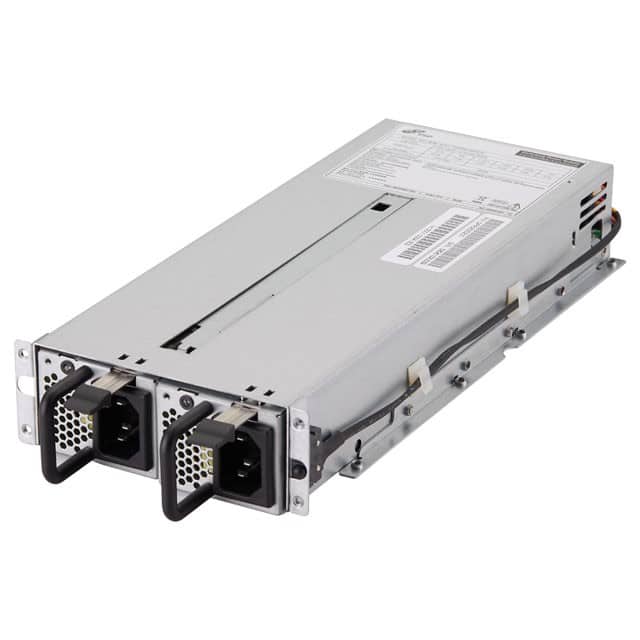

The FSP300-60RCB is a 300-watt, 1U redundant switching power supply designed for industrial environments. It provides a total power capacity of up to 300 Watts and meets the 80 Plus Bronze efficiency standard.
This power supply is suitable for applications such as IPC controllers, workstations, communication systems, and other automation tasks. It features a wide input voltage range of 90-264Vac and operates reliably between 0°C and 50°C.
Key features include hot-swappable modules, over current protection (OCP), over temperature protection (OTP), and over voltage protection (OVP). The unit is designed for operation at altitudes up to 5,000 meters above sea level and complies with safety standards like CB 62368-1 and CB 60950-1.
With dimensions of 260 x 106 x 41.3 mm, it is designed for rack mount installations. The FSP300-60RCB ensures high reliability and low ripple and noise for demanding applications.
90-264Vac.
260mm x 106mm x 41.3mm, rack mount.
0°C to 50°C.
+3.3V/20A, +5V/20A, +12V1/14A, +12V2/14A, -12V/0.5A, +5Vsb/2A.
Over current, over voltage, over temperature, short circuit protection, and resettable power shut down.
80% (80 Plus Bronze).
CB, CE, cULus, FCC, GS, TUV.
