| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Protection | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

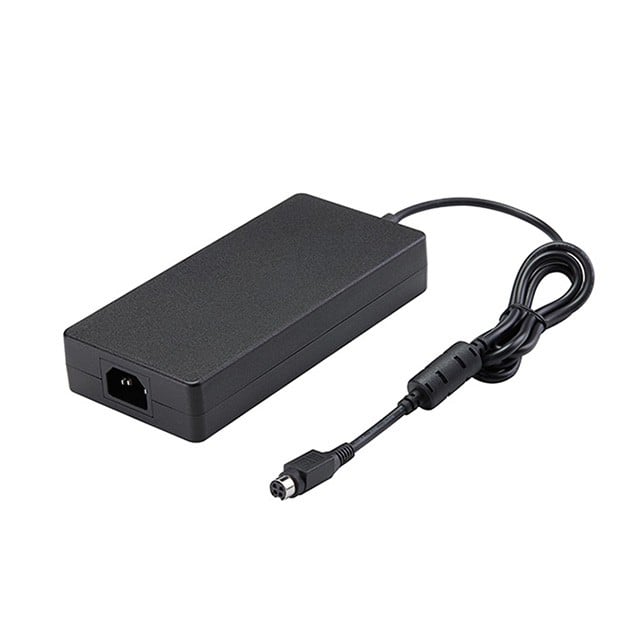

The FSP230-AJAN3 is a 230-watt AC to DC adapter designed for high-wattage demands in applications such as IPC systems, embedded systems, printers, monitors, and POS systems. It operates across a wide input voltage range of 90 to 264 VAC and features a power factor of at least 0.9 at full load.
This adapter meets stringent efficiency standards, including DOE Level VI and Code of Conduct Version 5 Tier 2. It incorporates essential protection features such as Over Current Protection, Over Temperature Protection, and Over Voltage Protection. The unit is designed for ITE applications and complies with emission limits including CISPR32/EN55032 Class B and FCC Part 15B Class B.
Key specifications include a 19.5V output voltage, a 230W total output power, and an IEC 320-C14 input connector. The physical dimensions are 177.0mm x 85.6mm x 32.2mm. It also meets safety standards like IEC 62368-1 and CB 60950-1, with various agency approvals including CE, cULus, and TUV.
90-264 VAC
0°C to 70°C
Level VI and CoC Tier 2
Over voltage, Short circuit & Over current, Over temperature, Brown-out
CB, CE, CCC, cULus, FCC, GS, TUV, VCCI
177.0mm x 85.6mm x 32.2mm
IEC 320-C14
