| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

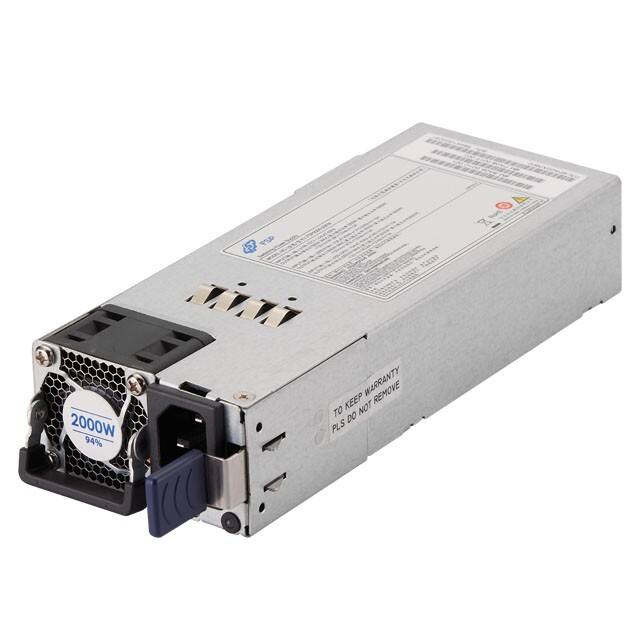

The FSP2000-20FM is a 2000 Watt CRPS module power supply from FSP Technology Inc. designed for demanding applications such as datacenters, workstations, and communication systems.
This power supply features a universal input voltage range of 90-264 VAC and boasts 80 Plus Platinum efficiency. It provides a single +12V output with a maximum current of 163.6A at 220-264V input. The module includes essential protection features like Over Current Protection (OCP), Over Temperature Protection (OTP), and Over Voltage Protection (OVP).
With dimensions of 185 x 73.5 x 39 mm, the FSP2000-20FM is designed for rack mounting. It operates within a temperature range of 0°C to 55°C and complies with safety standards including CB 62368-3 and CB 60950-1. The power supply also supports PMBus features for communication with the motherboard, enhancing its suitability for advanced system integration.
The FSP2000-20FM has a total power capacity of 2000 Watts.
The input voltage range is 90-264 VAC or 180-310 VDC.
The FSP2000-20FM is rated at 80 Plus Platinum efficiency.
The operating temperature range is 0°C to 55°C.
It is certified to CB 62368-3 and CB 60950-1 standards.
It includes Over Current Protection, Over Temperature Protection, and Over Voltage Protection.
