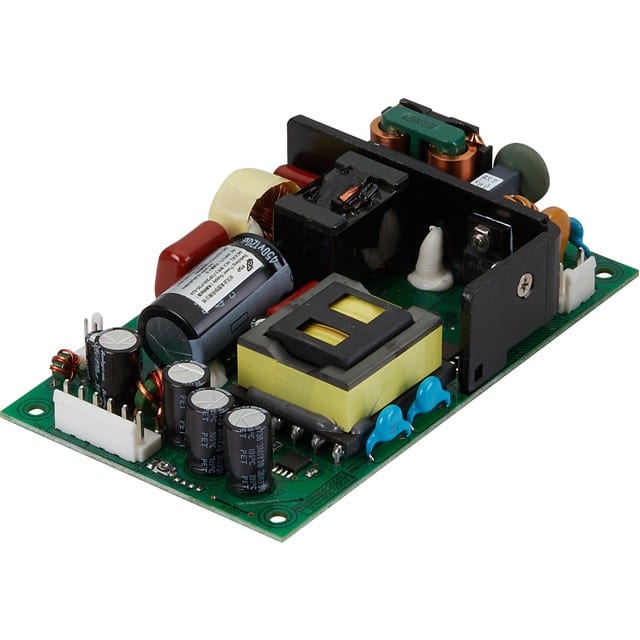

FSP200-P35-A12

The FSP200-P35-A12 is an AC-DC switching power supply designed for various applications including audio/video, display, household, information, and networking. It features a Class-I design and operates with a universal input voltage range of 90-264 VAC.

This power supply delivers 150 watts of continuous power under convection cooling and can provide up to 200 watts with 7 CFM forced air cooling. It boasts a low profile with dimensions of 3 x 5 x 1.284 inches and a chassis mount type. Key electrical specifications include a 12V output voltage, 12.5A output current, and high efficiency up to 90% with a power factor of 0.98 minimum at 115VAC.

Safety features include over-voltage, short circuit, over-current, and over-temperature protection. The unit operates within a temperature range of -20°C to 70°C and meets various safety and EMC standards such as IEC 60950-1, IEC 62368-1, EN 55032 Class B, and FCC Class B.

Additional features include low no-load power consumption (<0.21W), high altitude operation up to 5000 meters, and a calculated MTBF of 400,000 hours.
