| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

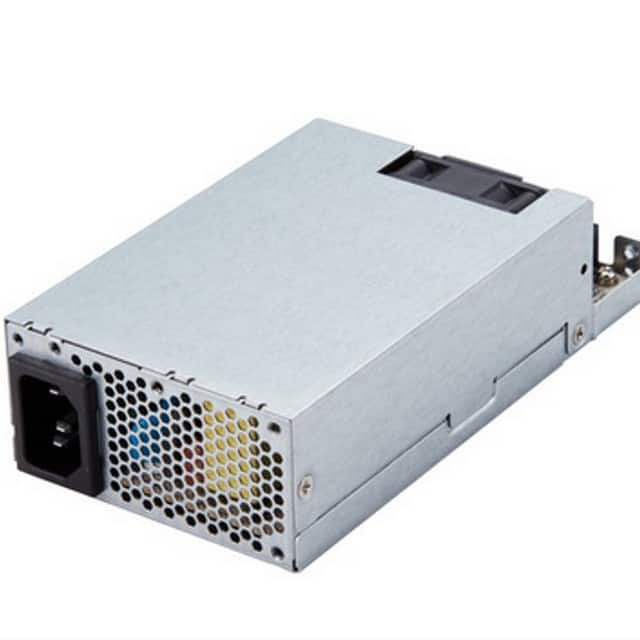

The FSP180-50FGNBI(M) is an industrial-grade AC/DC switching power supply from FSP Technology Inc., delivering up to 180 Watts of total power capacity. It features a universal input voltage range of 90-264Vac and a frequency range of 47-63Hz.
This power supply is designed for industrial environments and is suitable for server, workstation, communication, and automation applications. It includes features such as easy-swap cable management, over current protection, over temperature protection, and over voltage protection.
The unit provides multiple outputs including +3.3V, +5V, +12V, -12V, and +5Vsb, with specific current ratings for each. The dimensions are 150 x 81.5 x 40.5 mm (5.91 x 3.21 x 1.59 inches). It operates at temperatures up to 50°C and complies with the latest safety and EMC standards, including CB 62368-1 and CB 60950-1.
With a minimum efficiency of 72% and an MTBF of 100,000 hours, the FSP180-50FGNBI(M) is built for high reliability and continuous operation.
The input voltage range is 90-264Vac at 47-63Hz.
The outputs are +3.3V at 8A, +5V at 12A, +12V at 12A, -12V at 0.3A, and +5Vsb at 2A.
The datasheet specifies a total power capacity of 180W, with a combined +3.3V and +5V output not exceeding 61W.
The dimensions are 150 x 81.5 x 40.5 mm (5.9 x 3.21 x 1.59 inches) and it is chassis mounted.
The maximum operating temperature is 50°C. Storage temperature range is -20°C to +80°C.
The converter includes over current protection (OCP), over voltage protection (OVP), and over temperature protection (OTP).
