| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

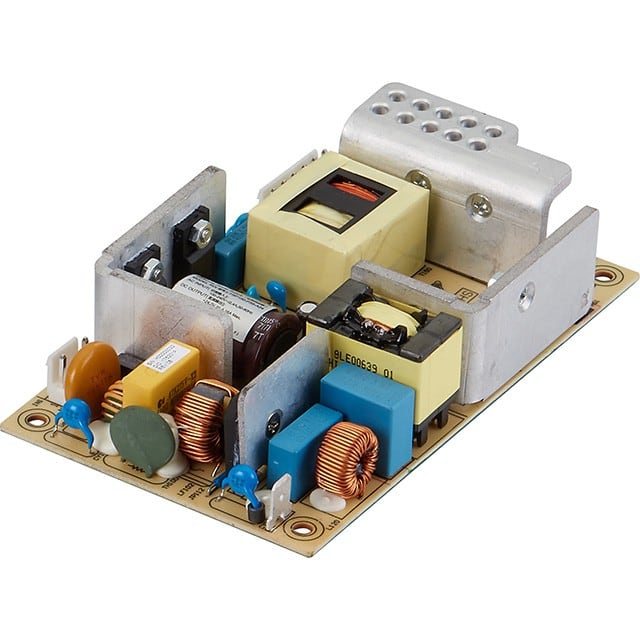

The FSP150-P35-A54 is an open frame AC/DC switching power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264 VAC and delivers a single 54V output at up to 2.78A, providing a total of 150W of power.
Key features include a high efficiency of 92%, Power Factor Correction (PFC), and low no-load power consumption. The unit is designed to meet IEC 62368-1 safety standards and complies with EN 55032 Class B emissions. It offers protection features such as over-voltage, short circuit, over-current, and over-temperature protection.
The power supply has a compact form factor measuring 127.0mm x 76.2mm x 27.0mm (5.00" L x 3.00" W x 1.06" H), suitable for chassis mounting. It operates within an ambient temperature range of -20°C to +70°C with derating and can operate at altitudes up to 5000 meters.
90-264 VAC at 47-63 Hz.
Box, chassis mount.
-20°C to +70°C.
54V at 2.78A.
Over voltage, over current, short circuit, over temperature, and brown out protection.
92%.
127.0mm x 76.2mm x 27.0mm (5.00" x 3.00" x 1.06").
