| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

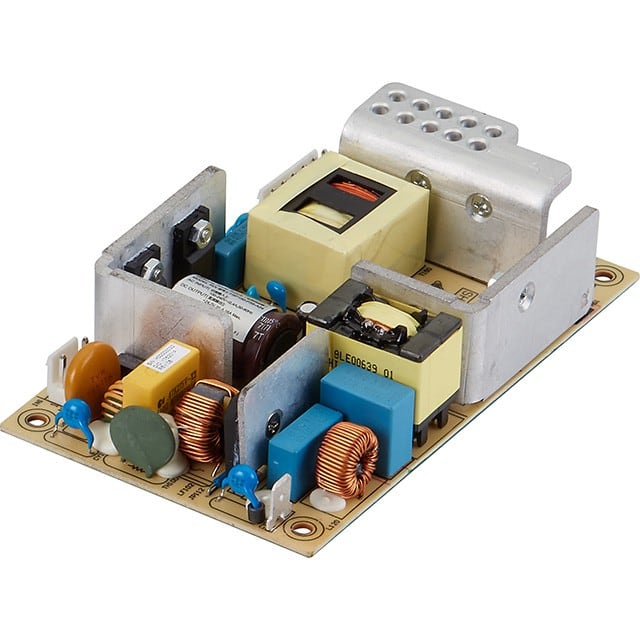

This FSP150-P35-A12 is an AC-DC switching power supply designed for ITE (Commercial) applications. It is an open-frame unit with a chassis mount type, providing a continuous output power of 150W. The power supply operates with a universal input voltage range of 90-264 VAC and features a 12V output.
Key specifications include a low profile design measuring 127.0mm x 76.2mm x 27.0mm, an efficiency of 92%, and a power factor minimum of 0.98 at 115VAC. It meets safety standards IEC 62368-1 and 60950-1, and complies with EMC standards such as EN55032 Class B conducted and radiated emissions. The operating temperature range is -20°C to 70°C.
Additional features include over-voltage, short circuit, over-current, and over-temperature protection. It also supports high altitude operation up to 5000 meters and has a low no-load power consumption of less than 0.21W.
The input voltage range is 90-264 VAC at 47-63 Hz.
The output is 12V at 8.34A, providing 150W total power.
The operating temperature range is -20°C to +70°C. Storage temperature is -40°C to +85°C.
The dimensions are 127.0mm x 76.2mm x 27.0mm (5.00" x 3.00" x 1.06").
Protection includes over voltage (latch off at 110-122%), short circuit and over current (auto recovery), over temperature (thermistor latch off), and brown-out at 75VAC.
Typical efficiency is 92%.
It is designed for chassis mount installation in an open-frame package.
