| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

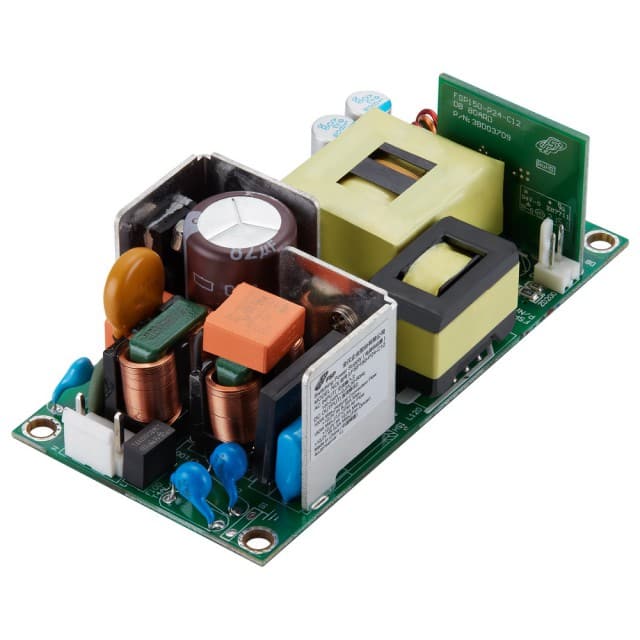

The FSP150-P24-C54 is an open-frame AC-DC switching power supply designed for ITE (Commercial) applications. It features a Class-I design with Protected Earth and operates within a wide input voltage range of 90-264 VAC.
This power supply is capable of delivering 150 watts of continuous power with 7 CFM forced air cooling, or 100 watts with convection cooling at a 50℃ operation temperature. It includes features such as PFC, universal input, and a 12V fan driver. The compact dimensions of 2 x 4 x 1.2 inches make it suitable for various integration needs.
Compliance includes IEC 62368-1 safety standards and EN55032 Class B emissions. The operating temperature range is -20℃ to +70℃, with derating applied above 50℃. Protection features include over-voltage, short-circuit, over-current, and over-temperature.
Applications include audio & video, display, information, and networking equipment. The unit is chassis mountable and designed for efficient power conversion.
90-264 VAC.
-20°C to +70°C.
Over voltage latch off, short circuit auto recovery, over current auto recovery, and over temperature latch off.
IEC 62368-1, Class-I design.
12V non-regulated at up to 500 mA.
101.6mm x 50.8mm x 30.5mm (4.00" x 2.00" x 1.20").
