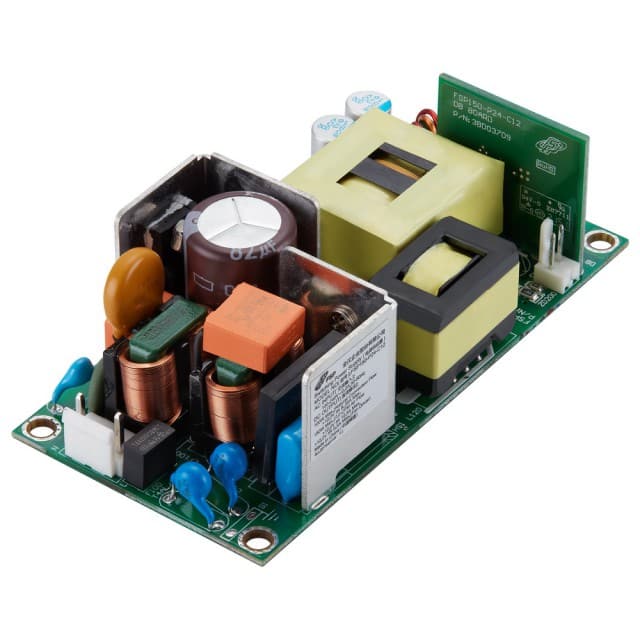

The FSP150-P24-C12 is an AC-DC switching power supply designed by FSP Technology Inc. This open frame unit operates with a Class-I design and meets the IEC 62368-1 safety standard.
It offers a 12V non-regulated output at 500mA max for fan driver and a main output capable of delivering 150W continuous power with 7 CFM forced air cooling, or 100W continuous power with convection cooling at 50°C operation temperature. The input voltage range is 90-264 VAC with a frequency of 47-63 Hz. Key electrical specifications include a minimum power factor of 0.9 and an efficiency of 91%.
The power supply measures 4.00 x 2.00 x 1.20 inches (101.6 x 50.8 x 30.5mm) and is designed for chassis mounting. It operates within an ambient temperature range of -20°C to +70°C, with derating applied above 50°C. Protection features include over-voltage, short circuit, over-current, and over-temperature protection.
Suitable for audio & video, display, information, networking & PoE applications, the FSP150-P24-C12 complies with EN55032 Class B radiated and conducted emissions standards and is approved by CE and cCSAus.
The input voltage range is 90-264 VAC at 47-63 Hz.
The output is 12V at 12.5A, with total power of 150W under forced air cooling or 100W under convection cooling.
The operating temperature range is -20°C to +70°C, with linear derating from 100% at +50°C to 50% at +70°C.
The dimensions are 101.6 mm (L) x 50.8 mm (W) x 30.5 mm (H) and it is designed for chassis mount.
It includes over voltage protection (latch-off), over current protection (auto-recovery), short circuit protection (auto-recovery), and over temperature protection (latch-off).
The typical efficiency is 91%.
It meets IEC 62368-1 and carries CE and cCSAus approvals.
