| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

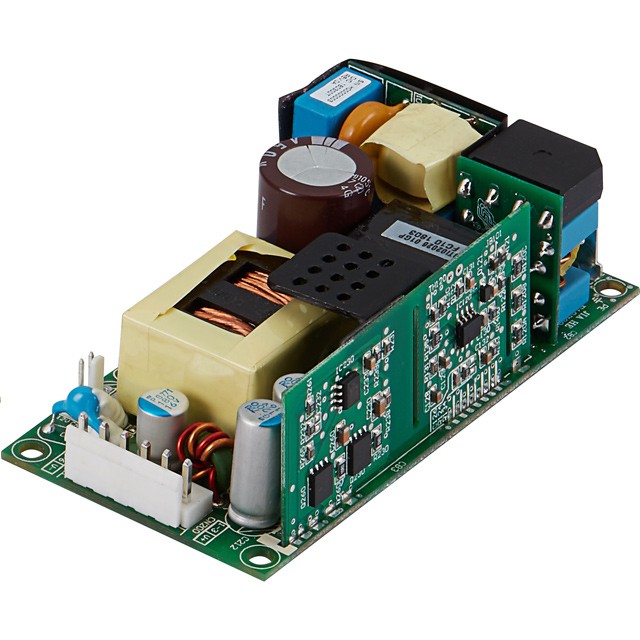

This FSP150-P24-A54 is an open frame AC/DC switching power supply from FSP Technology Inc., designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264 VAC and features a power factor of 0.9 minimum.
The converter delivers a single 54V output with a continuous power rating of 100W under convection cooling, and can provide up to 150W with 7 CFM forced air cooling. It boasts an efficiency of 90% and features like PFC and universal input. The unit has a low profile, measuring 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm), and is designed for chassis mounting.
Safety standards met include IEC 60950-1, IEC 60065-1, and IEC 62368-1. It includes protections such as over-voltage, short circuit, over-current, over-temperature, and brown-out protection. The operating temperature range is -20°C to 70°C with derating, and storage temperature is -40°C to 85°C.
The input voltage range is 90-264 VAC.
The output voltage is 54V and the output current is 1.85A.
The operating temperature range is -20°C to +70°C with derating.
It includes over voltage, over current, short circuit, over temperature, and brown out protection.
The efficiency is 90%.
The dimensions are 101.6mm x 50.8mm x 29.0mm.
