| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

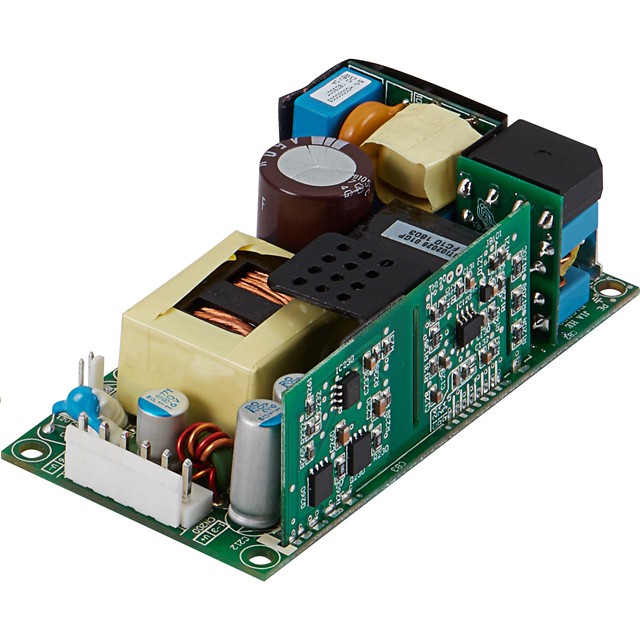

The FSP150-P24-A19 is an open frame AC/DC converter from FSP Technology Inc. designed for commercial ITE applications. It delivers a single 19V output at 5.26A, providing 100W of continuous power in natural convection cooling, and up to 150W with forced air. The converter features active PFC and universal AC input, achieving a typical efficiency of 90%.
Housed in a compact open frame chassis mount package measuring 101.6mm x 50.8mm x 29.0mm, it offers 500V input-to-output isolation. The operating temperature range is -20°C to 70°C with derating. Safety certifications include CB, CE, cCSAus, CSA, FCC, UL, and VCCI, making it suitable for worldwide use in commercial electronics.
19V.
100W natural convection, up to 150W with forced air cooling.
90%.
-20°C to 70°C with derating.
Chassis Mount.
Yes, PFC (Power Factor Correction) is a feature.
CB, CE, cCSAus, CSA, FCC, UL, VCCI.
