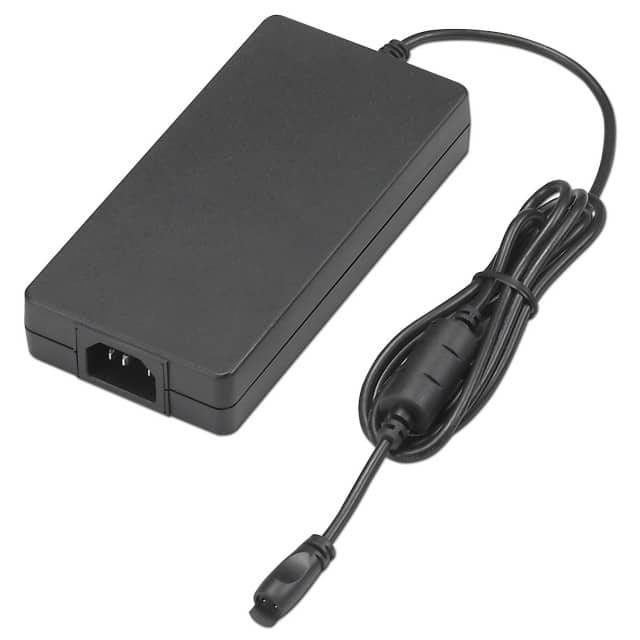

The FSP150-AHAN3 is a 150-watt AC-DC power adapter designed for demanding industrial applications. It accepts a universal AC input of 90-264 VAC and delivers a stable 12V output at 12.5A.
This adapter meets global energy efficiency standards, including DOE Level VI and CoC Version 5 Tier 2, with efficiencies of ≥88% (DOE) and ≥89% (CoC). It incorporates active Power Factor Correction (PF ≥0.9 at full load) and complies with EN61000-3-2 harmonic limits.
Comprehensive protection features include Over Voltage, Over Current, Over Temperature, Short Circuit, and Brown-out protection. The unit operates within a temperature range of 0-70°C and supports an altitude up to 5000 meters. It meets various EMC standards, including EN55032 Class B and FCC Part 15B.
The FSP150-AHAN3 features a low-profile mechanical design with a C14 AC inlet, making it suitable for IPC systems, embedded systems, printers, monitors, POS terminals, and PoE devices.
The FSP150-AHAN3 provides a 12V output at 12.5A.
The adapter accepts a universal input voltage range of 90-264 VAC.
The maximum output power is 150W.
The operating temperature range is from 0°C to 70°C.
Yes, it meets DOE Level VI and CoC Version 5 Tier 2 efficiency standards.
It features an IEC 320-C14 input connector.
It includes Over Voltage, Over Current, Over Temperature, Short Circuit, and Brown-out protection.
