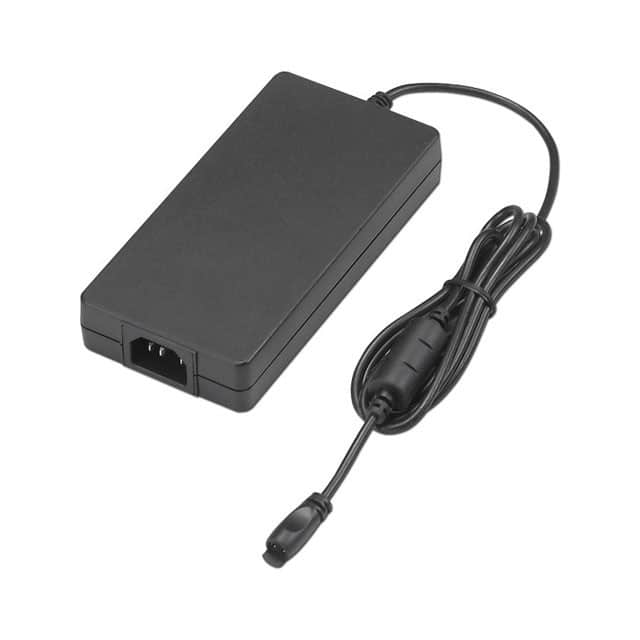

FSP150-ABAN3 The FSP150-ABAN3 is a 150W AC to DC adapter from FSP Technology Inc., designed for ITE applications. It operates from 90-264 VAC and provides a 19V output.
Mfr Part #:

FSP150-ABAN3

Mfr Name: FSP Technology Inc.
FSP Technology Inc.
The FSP150-ABAN3 is a 150W AC to DC adapter from FSP Technology Inc., designed for ITE applications. It operates from 90-264 VAC and provides a 19V output.
Stock on Request

FSP150-ABAN3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Protection
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

FSP150-ABAN3 Description

Short technical summary and product information.

The FSP150-ABAN3 is a 150-watt AC to DC adapter manufactured by FSP Technology Inc. This adapter is designed for use in various applications such as IPC systems, embedded systems, printers, monitors, and POS systems that require high wattage demands.



It operates within a wide input voltage range of 90 to 264 VAC and features a 19V output voltage with a maximum power of 150W. The adapter meets stringent efficiency standards, including USA EISA 2007, DOE Level VI, and Code of Conduct Version 5 Tier 2. It also complies with international safety and EMC standards such as IEC 62368-1, CB 60950-1, EN55032 Class B, and FCC Part 15B Class B.



Key features include over-current, over-temperature, and over-voltage protection, along with a built-in PFC circuit for improved power factor. The unit has a compact desktop form factor with dimensions of 151.3mm x 75.6mm x 25.4mm and utilizes an IEC 320-C14 input connector and a 4-pin Power DIN output connector. The operating temperature range is from 0°C to 70°C.

FSP150-ABAN3 Quick Information

Product Type: AC to DC Adapter
Series: FSP150-AxxN3 Series
Canonical Name: FSP150-ABAN3 AC to DC Adapter
Subcategory: Desktop Adapter

FSP150-ABAN3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSP150-ABAN3 Features

  • 150W AC to DC desktop adapter.
  • 19V output voltage.
  • Meets Level VI efficiency standards.
  • Certified to IEC 62368-1 and CB 60950-1.
  • Includes over-voltage and over-current protection.

FSP150-ABAN3 Applications

  • Suitable for IPC systems.
  • Designed for embedded systems.
  • Ideal for printers and monitors.
  • Used in POS systems.
  • Supports PoE applications.

FSP150-ABAN3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and power of the FSP150-ABAN3 adapter?

The FSP150-ABAN3 adapter has a 19V output voltage and a total output power of 150W.

What are the input voltage and frequency ranges for this adapter?

The adapter operates with an input voltage range of 90-264 VAC and an input frequency of 47-63 Hz.

What efficiency standards does the FSP150-ABAN3 meet?

The adapter meets USA EISA 2007, DOE Level VI, and Code of Conduct Version 5 Tier 2 efficiency standards.

What safety and EMC standards are met by this adapter?

It is certified to IEC 62368-1 & CB 60950-1 and meets EN55032 Class B and FCC Part 15B Class B emission limits.

What protections are included in the FSP150-ABAN3?

The adapter includes Over Current Protection, Over Temperature Protection, and Over Voltage Protection.

What is the operating temperature range for this adapter?

The operating temperature range is from 0°C to 70°C.

What is the physical size of the FSP150-ABAN3 adapter?

The adapter measures 151.3mm in length, 75.6mm in width, and 25.4mm in height.
