| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

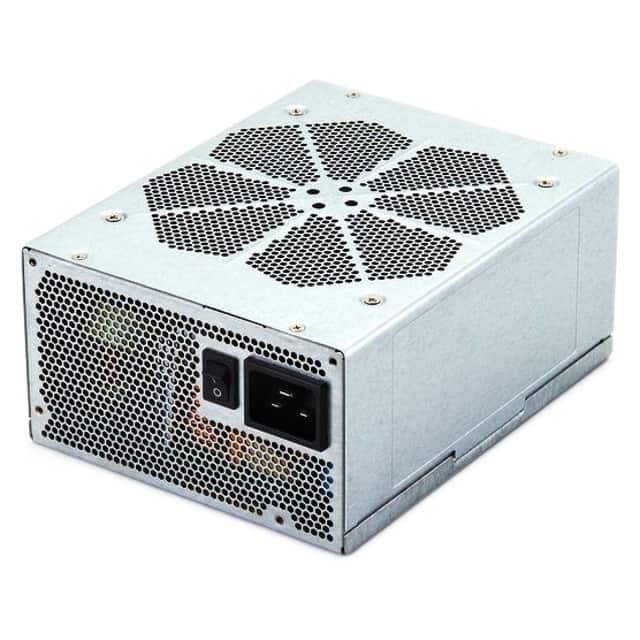

The FSP1200-50ADB is a high-wattage ATX switching power supply designed by FSP Technology Inc. It provides a total power capacity of up to 1200 Watts, making it suitable for demanding applications.
This power supply features universal input (90-264Vac) and operates within a frequency range of 47-63Hz. It boasts 80 Plus Gold efficiency, ensuring optimal power conversion. Key electrical specifications include multiple output voltages (+3.3V, +5V, +12V, -12V, +5Vsb) with corresponding maximum current ratings and regulation limits.
The FSP1200-50ADB is built for industrial environments, offering features like cable management and compliance with the latest safety and EMC standards. It is designed to meet various worldwide regulations. The dimensions are 190 x 150 x 86 mm (7.49 x 5.91 x 3.39 inches). It operates within a temperature range of 0°C to 50°C and can function at altitudes up to 5,000 meters above sea level.
Applications for this power supply include AI servers, graphic design workstations, communication systems, and other automation applications. It also meets safety standard approvals such as CB 62368-1 and CB 60950-1.
The FSP1200-50ADB is rated for 1200W continuous output power.
It is certified 80 Plus Gold with 80% minimum efficiency.
The universal input accepts 90-264Vac at 47-63Hz.
Five outputs: +3.3V at 30A, +5V at 30A, +12V at 100A, -12V at 0.8A, and +5Vsb at 4A.
The converter operates from 0°C to 50°C.
