| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

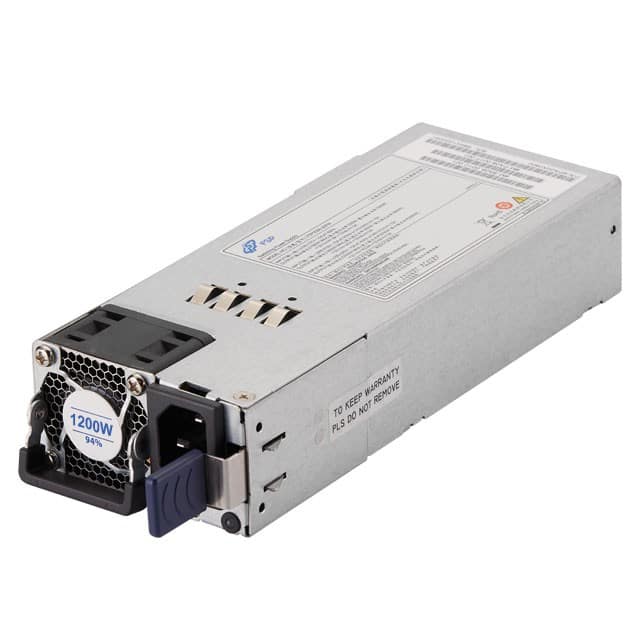

The FSP1200-20FM is a 1200W redundant power supply module based on the CRPS 2.0 standard. It offers a total power capacity of up to 1200 Watts and supports PMBus features for communication with the motherboard.
This power supply is suitable for datacenter, workstation, communication, and automation applications. It operates with an input voltage range of 90-264Vac and provides +12V and +12Vsb outputs. The unit boasts 80 Plus Platinum efficiency, ensuring optimal power utilization.
Key specifications include dimensions of 185 x 73.5 x 39 mm, an operating temperature range of 0°C to 55°C, and an MTBF of 250,000 hours. The FSP1200-20FM complies with the latest safety and EMC standards, including CB 62368-1 and CB 60950-1, meeting various worldwide regulations.
Designed for high reliability, this module supports operation at altitudes up to 5,000 meters above sea level. It incorporates Over Current Protection, Over Temperature Protection, and Over Voltage Protection for enhanced system safety.
The FSP1200-20FM has a maximum input voltage of 264Vac.
The FSP1200-20FM provides +12V and +12Vsb outputs.
The maximum output current for the +12V rail at 200-240V input is 97A.
The FSP1200-20FM has a power rating of 1200W.
The operating temperature range is 0°C to 55°C.
The MTBF is 250,000 hours of continuous operation at 45°C, 75% output load.
Yes, the FSP1200-20FM supports PMBus 1.2.
