| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

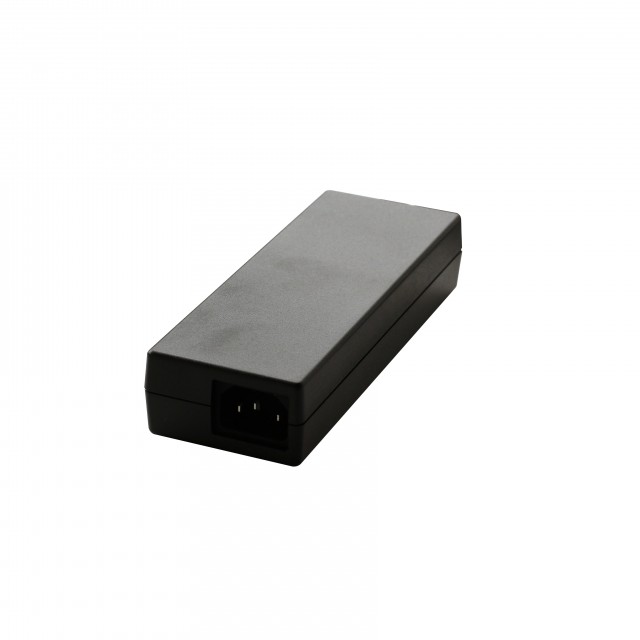

The FSP084-DHAN3 is a versatile 84-watt AC to DC desktop adapter designed for ITE (Commercial) applications. It operates within a wide input voltage range of 90 to 264 VAC and delivers a stable 12V output with a maximum current of 7A.
This adapter meets key international safety and EMC standards, including IEC 62368-1 and IEC 60950-1, along with EMC standards like EN55032 Class B and FCC Part 15B Class B. It is designed for high reliability and includes over-current, over-temperature, and over-voltage protection.
With an efficiency of 89% and a low no-load power consumption of 150mW, the FSP084-DHAN3 is energy-efficient. It features an IEC 320-C14 input connector and a standard barrel plug output connector. The operating temperature range is 0°C to 70°C.
90-264 VAC
0°C to 70°C
12V DC at 7A maximum.
60950-1 and 62368-1
CCC, CE, cULus, FCC, GS, TUV
89%
