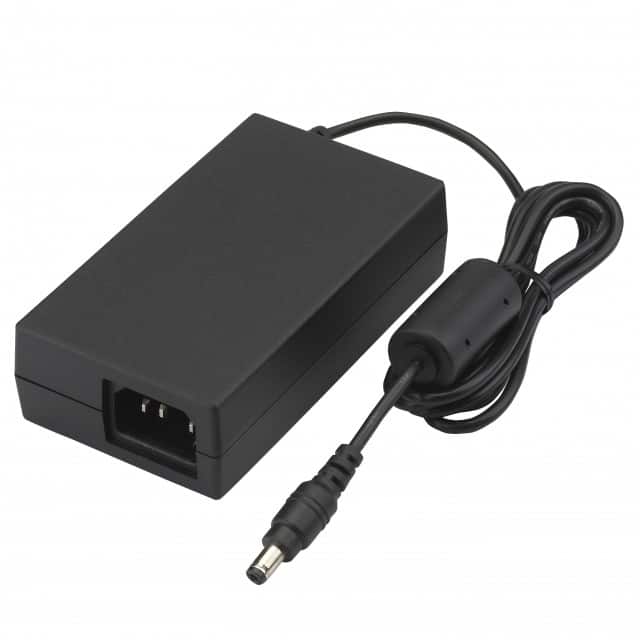

The FSP065M-DGA is a high-efficiency 65-watt AC/DC desktop power adapter from FSP Technology Inc., part of the FSP065M series. It features a compact size of 129.1 x 58.1 x 31.5 mm and an IEC 320/C14 AC inlet.
This adapter is certified for medical safety according to IEC 60601-1 and meets Energy Efficiency DOE Level VI standards. It operates within a wide input voltage range of 90-264 VAC and offers a stable 15V output at a maximum current of 4.33A, delivering up to 65W of continuous power. The adapter is designed for international use and includes protections against over-voltage, short-circuit, over-current, and over-temperature.
Environmental specifications include an operating temperature range of 0°C to 40°C and a storage temperature range of -20°C to +85°C. It also meets EN55011 and FCC Class B emission limits, making it suitable for various applications, particularly in the medical field. The adapter has a low no-load power consumption of 210mW and a calculated MTBF of 150,000 hours at full load.
The input voltage range is 90-264 VAC.
It provides 15V at up to 4.33A.
The operating temperature range is 0°C to 40°C.
It is a desktop (Class I) adapter with an IEC 320-C14 input connector.
It carries CE, cULus, FCC, TUV, and VCCI approvals per IEC 60601-1 medical standard.
Typical efficiency is 88%.
Maximum no-load power consumption is 210 mW.
