| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

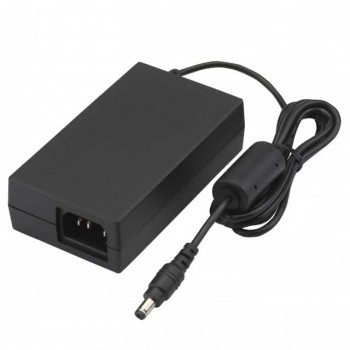

The FSP065M-DBA is an AC/DC desktop adapter manufactured by FSP Technology Inc. This adapter is designed for medical applications and operates with an input voltage range of 90 to 264 VAC, delivering a stable 19V output at a maximum current of 3.43A, for a total power of 65W.
It features Level VI efficiency, ensuring minimal energy waste with a no-load power consumption of 210mW maximum. The adapter operates within a temperature range of 0°C to 40°C. Its physical dimensions are 129.1mm x 58.1mm x 31.5mm, with a negative center polarization and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). The input connector is an IEC 320-C14, and the cord length is 1.20m.
Compliance is certified by CE, cULus, FCC, TUV, and VCCI, adhering to the standard number 60601-1. The adapter is classified as Class I and is suitable for international use. The package type is a box, and it is RoHS3 compliant.
The FSP065M-DBA adapter has an output voltage of 19V and a maximum output current of 3.43A.
The FSP065M-DBA adapter has a power rating of 65W.
The FSP065M-DBA adapter accepts an input voltage range of 90 to 264 VAC.
The FSP065M-DBA adapter meets Level VI efficiency.
The operating temperature range for the FSP065M-DBA adapter is 0°C to 40°C.
The dimensions of the FSP065M-DBA adapter are 129.1mm x 58.1mm x 31.5mm.
The FSP065M-DBA adapter is approved by CE, cULus, FCC, TUV, and VCCI.
