| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

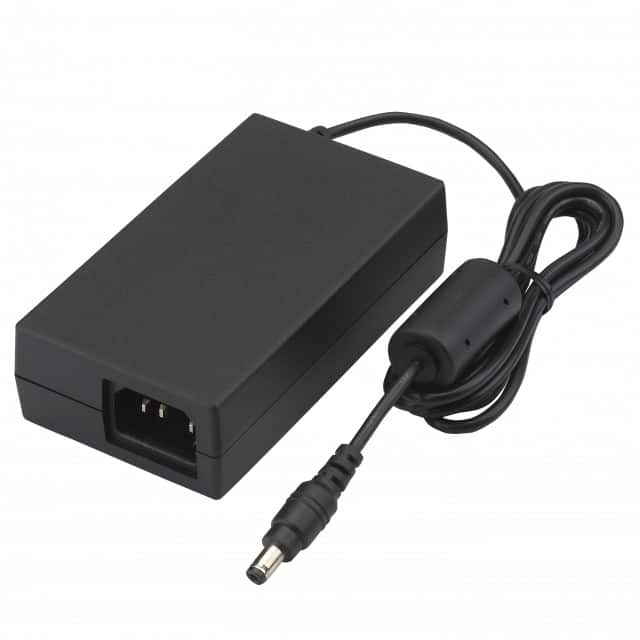

The FSP065M-DAA from FSP Technology Inc. is a high-efficiency 65-watt AC/DC desktop adapter designed for medical applications. It operates with a universal input voltage range of 90-264 VAC and features an IEC 320/C14 AC inlet.
This adapter delivers a continuous output power of 65W, with specific models offering various voltage and current ratings, including a 24V output at 2.71A. It is certified for medical safety according to IEC 60601-1 and meets Energy Efficiency DOE Level VI standards. The device includes protections for over-voltage, over-current, and over-temperature conditions.
Key features include a compact size of 129 x 59 x 32 mm, low no-load power consumption of 0.21W, and the ability to operate at high altitudes up to 5000M. It also meets EN55011 and FCC Class B emission limits, making it suitable for various medical and industrial environments. The adapter is compliant with RoHS requirements.
The FSP065M-DAA utilizes a desktop form factor (Class I) and comes with an IEC 320-C14 input connector. The output is a barrel plug with positive center polarization. The unit is designed for international use and includes features like over-voltage, over-current, and over-temperature protection.
90-264 VAC.
12V, 15V, 19V, 20V, and 24V.
65W.
Level VI.
IEC 60601-1, with 2 MOPP isolation and 4000 VAC withstand voltage.
0°C to 40°C.
