| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Protection | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

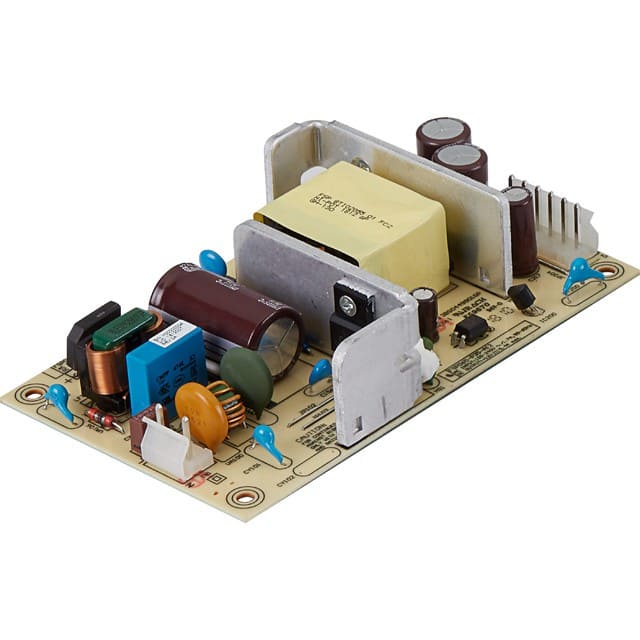

This FSP065-P35-A05 is an AC/DC switching power supply from FSP Technology Inc., designed as an open frame unit suitable for chassis mounting. It delivers a continuous 65 watts of power with a 5V output voltage.
The power supply operates across a wide input voltage range of 90-264 VAC and a frequency of 47-63 Hz. It boasts a low no-load power consumption of less than 0.21W and an efficiency of 86%.
Key features include a compact dimension of 127.0mm x 76.2mm x 27.0mm, an operating temperature range of -20°C to 70°C with derating, and protection against over-voltage, short circuit, over-temperature, and brown-out conditions.
Designed to meet stringent safety standards such as IEC 60950-1, IEC 60065-1, and IEC 62368-1, this converter is suitable for ITE (Commercial) applications. It also meets EMC performance standards including EN55032 Class B conducted and radiated emissions.
The input voltage range is 90-264 VAC at 47-63 Hz.
The output voltage is 5V with a total power of 65W.
The package is an open-frame chassis mount design.
The operating temperature range is -20°C to 70°C with derating above 50°C.
Protections include over voltage, short circuit, over current, over temperature, and brown-out, all with auto recovery.
Dimensions are 127.0mm x 76.2mm x 27.0mm (5.00" x 3.00" x 1.06").
It meets IEC 60950-1, IEC 60065-1, IEC 62368-1, and EN 61558-1 safety standards with approvals from CB, CE, cCSAus, FCC, UL, and VCCI.
