| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

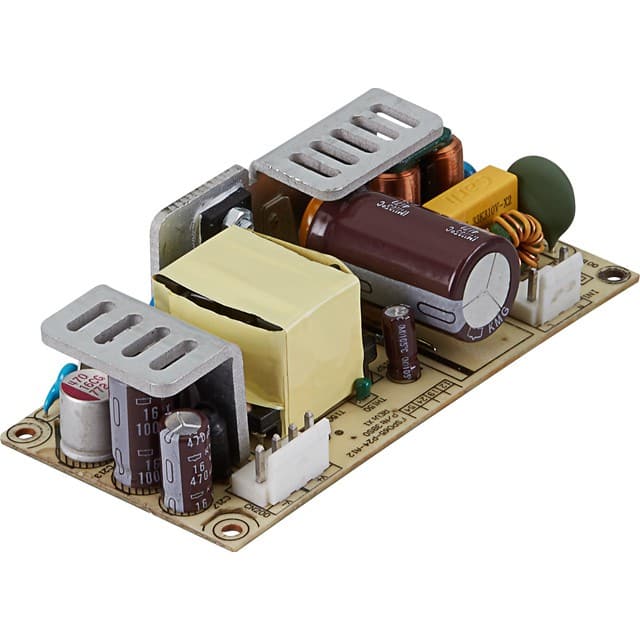

This FSP065-P24-A54 AC-DC switching power supply from FSP Technology Inc. delivers 65 watts of continuous power. It operates with a universal input voltage range of 90-264 VAC and features a Class-II design for enhanced safety.
The power supply is designed to meet IEC 60950-1, IEC 60065-1, and IEC 62368-1 safety standards. It boasts a low no-load power consumption of less than 0.21W and an efficiency of 92%.
With compact dimensions of 2"x4"x1.047", it is suitable for various applications including audio & video, display, information, and networking. The unit is designed for chassis mounting and operates within a temperature range of -20°C to +70°C, with derating above +50°C.
Key features include surge protection up to ±2 KV diff and ±4 KV com, over-voltage, short-circuit, over-temperature, and brown-out protection. It also supports high altitude operation up to 5000 meters.
90-264 VAC
54V at 1.2A, 65W total power
-20°C to +70°C
Over voltage protection, short circuit and over current protection, over temperature protection, and brown out protection, all with auto recovery.
92%
Open frame, chassis mount
Designed to meet IEC 60950-1, IEC 60065-1, and IEC 62368-1, Class II construction.
