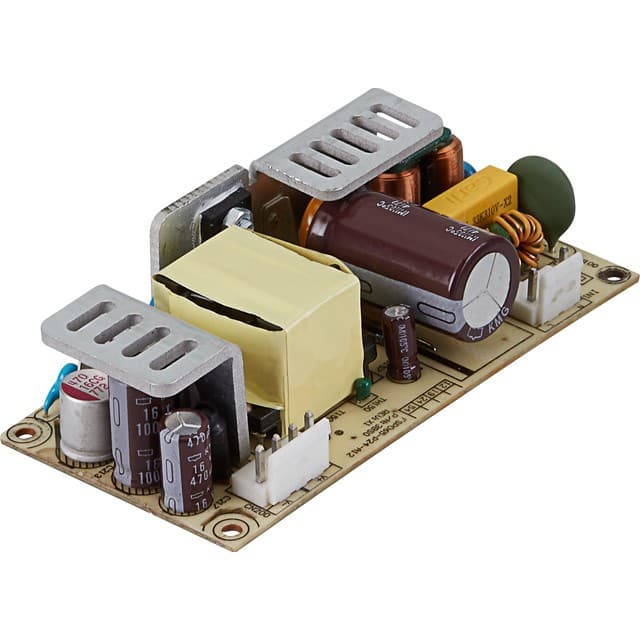

The FSP065-P24-A24 is a 65W AC/DC switching power supply designed for ITE (Commercial) applications. It features a compact open frame, chassis mount design with dimensions of 101.6mm x 50.8mm x 25.0mm.
This power supply operates with a wide input voltage range of 90-264 VAC and offers high efficiency up to 90%. It meets stringent safety standards including IEC 60950-1, IEC 60065-1, and IEC 62368-1, and complies with EMC standards such as EN55032 Class B for radiated and conducted emissions.
Key features include a low no-load power consumption of less than 0.21W, surge protection up to ±2 KV differential and ±4 KV common mode, and operation at altitudes up to 5000 meters. It also includes over-voltage, short-circuit, over-temperature, and brown-out protection.
The FSP065-P24-A24 is suitable for audio & video, display, information, and networking applications, offering reliable power conversion in a versatile form factor.
90-264 VAC
24V
Open Frame
Chassis Mount
-20°C to 70°C (with derating)
90%
Over voltage, over current, short circuit, and over temperature protection with auto recovery.
