| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Protection | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

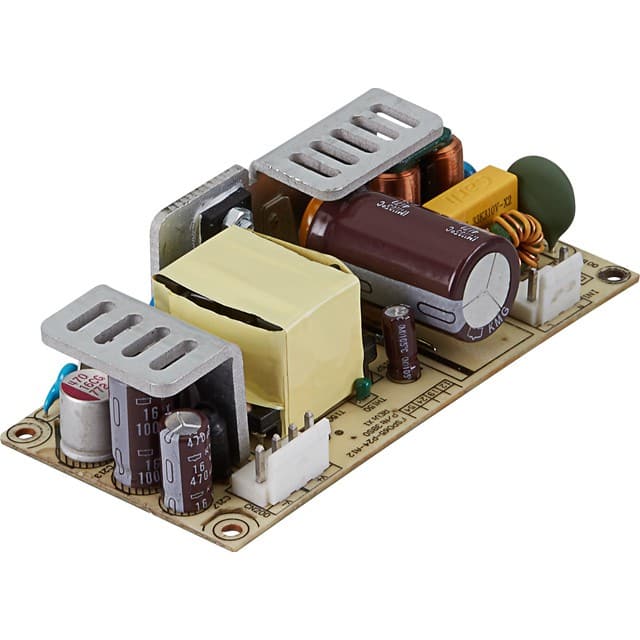

This FSP Technology Inc. FSP065-P24-A19 is an open-frame AC/DC switching power supply designed for ITE (Commercial) applications. It delivers a continuous 65 watts of power with a single 19V output at 3.42A.
The converter operates with a universal input voltage range of 90-264 VAC and features an efficiency of 90%. It is designed to meet IEC 60950-1 and IEC 62368-1 safety standards. The compact dimensions of 101.6mm x 50.8mm x 25.0mm make it suitable for integration into various systems.
Key electrical specifications include a low no-load power consumption of less than 0.21W, a hold-up time of 10mS minimum, and line regulation of ±0.5% maximum. It also includes over-voltage, short-circuit, over-temperature, and brown-out protection features. The operating temperature range is -20°C to 70°C with derating.
Compliance includes RoHS3, REACH Unaffected, and various EMC standards such as EN55032 Class B radiated and conducted emissions. Approval agencies include CB, CE, cCSAus, FCC, UL, and VCCI.
The FSP065-P24-A19 provides a single output of 19V at 3.42A.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 70°C with derating above 50°C.
It is designed to meet IEC 60950-1, IEC 60065-1, and IEC 62368-1 safety standards.
Protection features include over voltage, over current, short circuit, over temperature, and brown-out protection.
