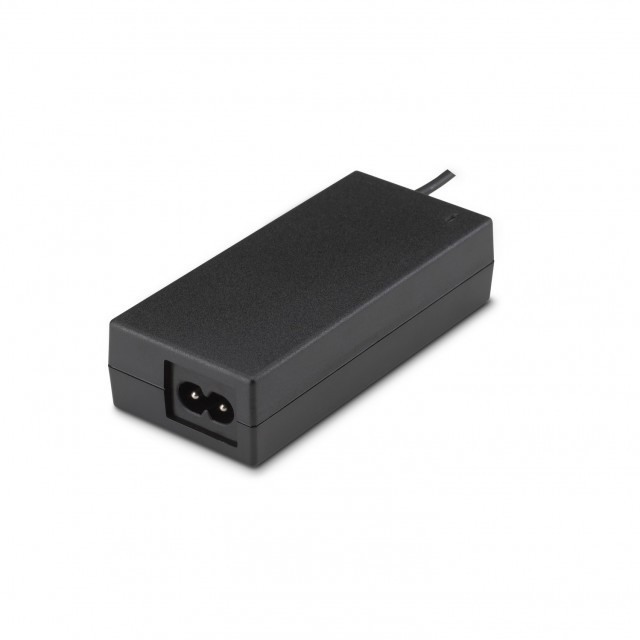

The FSP065-DBCM1 is an AC/DC external desktop adapter manufactured by FSP Technology Inc. This Class II adapter delivers a 19V output at a maximum current of 3.43A, providing a total power of 65W. It features an efficiency rating of 87% and a low no-load power consumption of 210mW.
The adapter operates within a universal input voltage range of 90 to 264 VAC and utilizes an IEC 320-C8 input connector. Its dimensions are 129.0mm x 51.0mm x 30.9mm. The unit is designed for international use and complies with the Standard Number 60601-1, with approvals from CE, cURus, and TUV.
Designed for medical applications, the FSP065-DBCM1 operates within a temperature range of 0°C to 40°C. It comes with a cord length of 59 inches (1.50m) and features a positive center polarization. The adapter is packaged in a box.
The FSP065-DBCM1 adapter has an output voltage of 19V and a maximum output current of 3.43A.
The FSP065-DBCM1 adapter has a power rating of 65W.
The operating temperature range for the FSP065-DBCM1 adapter is 0°C to 40°C.
The dimensions of the FSP065-DBCM1 adapter are 129.0mm in length, 51.0mm in width, and 30.9mm in height.
The FSP065-DBCM1 adapter supports an input voltage range of 90 to 264 VAC.
The FSP065-DBCM1 adapter has an efficiency of 87%.
The FSP065-DBCM1 adapter holds approvals from CE, cURus, and TUV.
