| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Protection | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

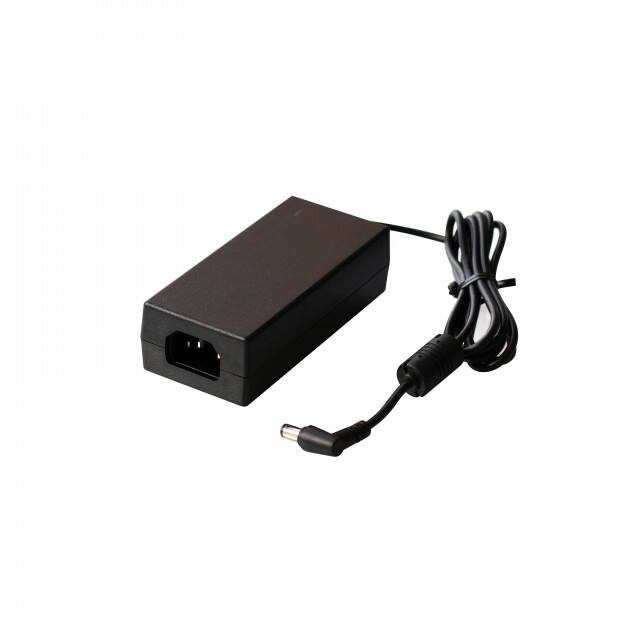

This FSP Technology Inc. FSP050-DWAN3 is a 50-watt AC to DC desktop adapter, suitable for ITE (Commercial) applications. It operates with an input voltage range of 90-264 VAC and a frequency of 47-63 Hz, featuring an IEC 320-C14 input connector.
The adapter delivers a stable 54V output at 0.93A, with a total power capacity of 50W. Key electrical specifications include an efficiency of 88.59% and a no-load power consumption of 75mW. It is designed with protections for over voltage, short circuit, over current, over temperature, and brown-out conditions.
Mechanically, the adapter has dimensions of 110.0mm x 50.0mm x 32.0mm and uses a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). It is rated for operation in environments from 0°C to 70°C. The unit meets international standards including IEC 60950-1 and IEC 62368-1, and complies with EMC standards like EN55032 Class B.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The adapter is designed for international utilization and carries approvals from CCC, CE, cULus, FCC, GS, and TUV.
The operating temperature range is 0°C to 70°C.
The output voltage is 54V DC at 0.93A (50W).
It uses an IEC 320-C14 input connector requiring a separate power cord.
It is approved to CCC, CE, cULus, FCC, GS, and TUV standards, complying with 60950-1 and 62368-1.
Yes, it includes overvoltage, short circuit, overcurrent, overtemperature, and brown-out protection.
The typical efficiency is 88.59%.
The MTBF is 300,000 hours at 25°C per SR332 standard.
