| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,080 pcs
|
25080 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

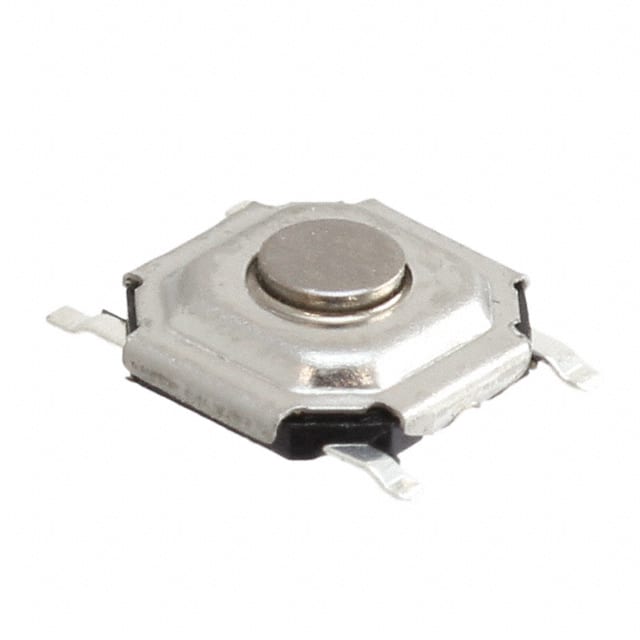

The TE Connectivity FSMCTTR is a tactile switch with a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration. It is rated for 0.02A at 15VDC, making it suitable for low-power applications.
This switch features a surface mount termination style with gull wing leads, facilitating automated assembly processes. The actuator is top actuated and has a height of 1.50mm off the PCB. Its operating temperature range is from -35°C to 85°C.
The dimensions of the switch outline are 5.00mm x 5.00mm. It is non-illuminated and has an operating force of 160gf. The switch function is Off-Mom (Off-Momentary).
Compliance includes RoHS3 status, MSL 1, and REACH unaffected. This component is designed for applications requiring a reliable tactile switching solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -35°C to 85°C.
The contact rating is 0.02A at 15VDC.
The FSMCTTR switch is designed for surface mount applications.
The FSMCTTR switch is RoHS3 Compliant.
