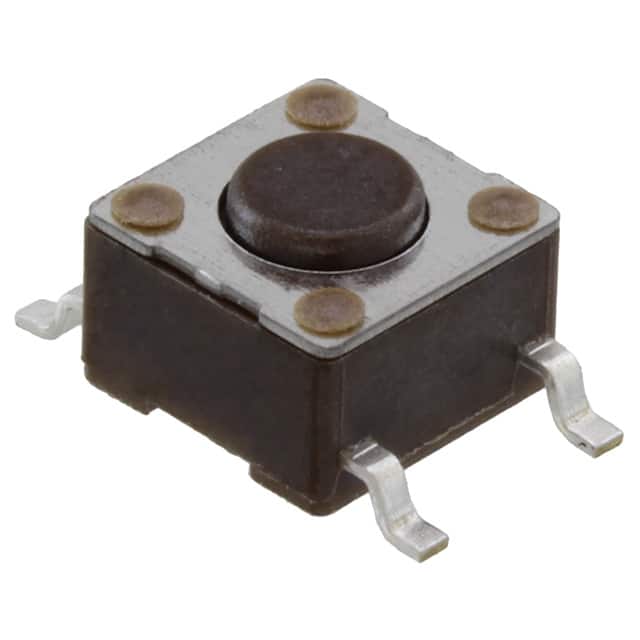

FSM2JSMLTR The TE Connectivity FSM2JSMLTR is a tactile switch with a Single Pole Single Throw Normally Open (SPST-NO) circuit. It features a 0.05A @ 24VDC contact rating and a surface mount gull wing termination style.
Mfr Part #:

FSM2JSMLTR

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity FSM2JSMLTR is a tactile switch with a Single Pole Single Throw Normally Open (SPST-NO) circuit. It features a 0.05A @ 24VDC contact rating and a surface mount gull wing termination style.
✓ Total Stock: 3,600 pcs
$ Price Range: $0.75

FSM2JSMLTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSM2JSMLTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Color
Actuator Height off PCB, Vertical
Actuator Length
Actuator Material
Actuator Orientation
Actuator Style
Actuator Type
Case Color
Circuit
Contact Base Material
Contact Rating @ Voltage
Halogen Free
Illumination
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Switch Type
Termination Style
View Similar Products (0)

FSM2JSMLTR Description

Short technical summary and product information.

The TE Connectivity FSM2JSMLTR is a tactile switch designed for electronic applications requiring momentary contact. It operates with a Single Pole Single Throw Normally Open (SPST-NO) configuration, providing a reliable Off-Mom function.



This switch features a contact rating of 0.05A at 24VDC and a low profile design. The mounting type is surface mount, and it utilizes gull wing termination style for secure PCB attachment. The actuator is round and top-actuated, with a standard type and an operating force of 100gf.



Key specifications include a switch height of 4.3mm and an outline of 6.00mm x 6.00mm. The operating temperature range is -35°C to 85°C. The switch is non-illuminated and has a tactile feel. It is packaged in tape and reel for automated assembly processes.

FSM2JSMLTR Quick Information

Product Type: Tactile Switch
Series: FSMJSML
Canonical Name: TE Connectivity FSM2JSMLTR Tactile Switch
Subcategory: Tactile Switches

FSM2JSMLTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSM2JSMLTR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FSM2JSMLTR Features

  • SPST-NO, Off-Mom tactile switch.
  • 0.05A @ 24VDC contact rating.
  • Surface mount with gull wing termination.
  • Low profile, 4.3mm height.
  • Round, top-actuated standard actuator.

FSM2JSMLTR Applications

  • Ideal for momentary user input.
  • Suitable for compact PCB designs.
  • Used in consumer electronics.
  • Applicable in industrial controls.

FSM2JSMLTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the contact rating for the FSM2JSMLTR tactile switch?

The contact rating is 0.05A @ 24VDC.

What type of mounting does the FSM2JSMLTR switch use?

The FSM2JSMLTR switch uses surface mount.

What is the operating temperature range for this tactile switch?

The operating temperature range is -35°C to 85°C.

Is the FSM2JSMLTR switch RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the MSL rating for the FSM2JSMLTR?

The MSL rating is 1 Unlimited.

What is the termination style of the FSM2JSMLTR?

The termination style is Gull Wing.

What is the operating force required for the FSM2JSMLTR?

The operating force is 100gf.
