| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,700 pcs
|
1700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor | |
| Self Resonant Frequency | |
| Shielding | |
| Supplier Device Package | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

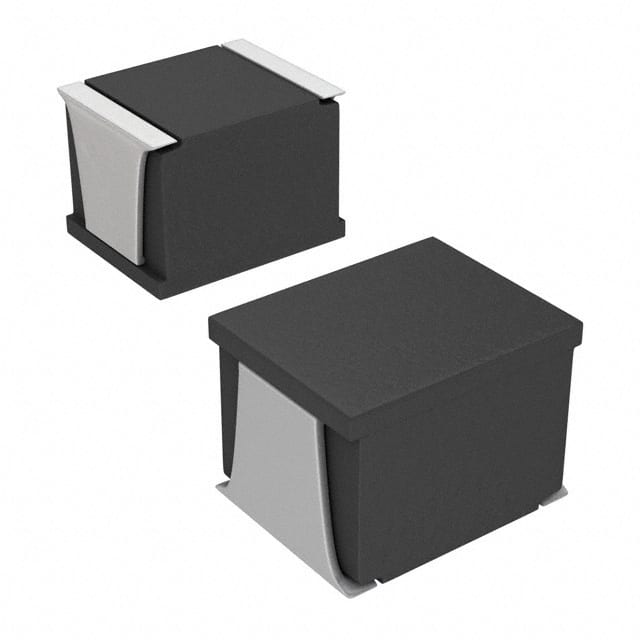

The FSLU2520-47NKP2 is a drum core, wirewound chip inductor from Toko America Inc. It offers 47 nH inductance with ±10% tolerance, a maximum DC resistance of 340 mOhm, and a rated current of 440 mA. The quality factor is minimum 30 at 25.2 MHz, and the self-resonant frequency is minimum 260 MHz. The inductor is unshielded and uses a ferrite core, operating over a temperature range of -40°C to 85°C.
This component is designed for general signal conditioning, RF or IF filtering, and impedance matching applications. Its wirewound construction with welded terminations provides high reliability and solderability. The package is a 1008 (2520 Metric) surface mount footprint with dimensions of 2.50 mm x 2.00 mm x 1.80 mm and SMD terminations.
Typical applications include DC-DC converter output filtering, noise suppression in power lines, and RF circuit matching. The high Q and self-resonant frequency make it suitable for high-frequency designs up to 260 MHz.
47 nH.
440 mA.
340 mOhm maximum.
260 MHz minimum.
1008 (2520 Metric) surface mount.
±10%.
-40°C to 85°C.
