| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,932 pcs
|
8932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Fault Protection | |
| Frequency | |
| Halogen Free | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Voltage |
The FSL138MRTWDTU is an integrated circuit from On Semiconductor designed as an AC/DC converter and offline switch. It features a Flyback topology and an isolated output, making it suitable for various power supply applications.
This component operates within a voltage range of 7.5V to 26V and can deliver up to 50W of power. It has a frequency of 67kHz and a duty cycle of 67%. The device includes fault protection features such as current limiting, overload, over-temperature, and over-voltage protection.

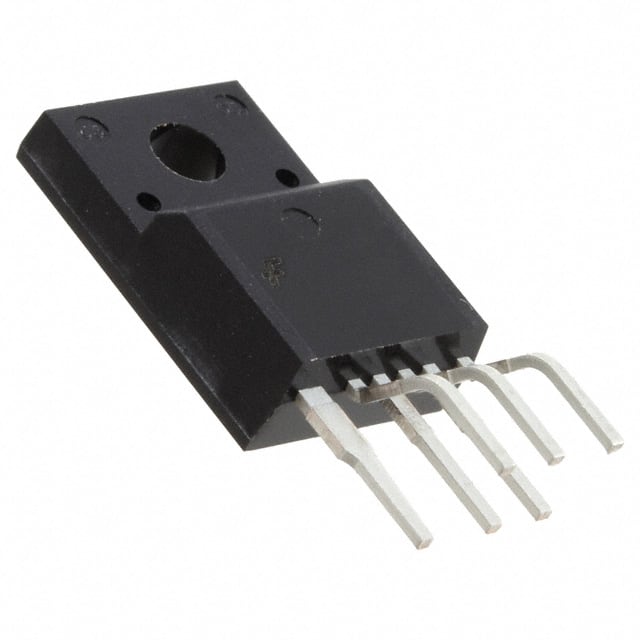

Packaged in a TO-220-6 Full Pack with formed leads, the FSL138MRTWDTU is designed for through-hole mounting. Its operating temperature range is -40°C to 125°C (TJ). The internal switch is integrated, simplifying circuit design.
This IC is compliant with RoHS3 standards and has an MSL rating of 1 (Unlimited). It is suitable for applications requiring efficient and reliable AC/DC conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating junction temperature range is -40°C to 125°C.
The switching frequency is 67kHz.
The input voltage range is 7.5V to 26V.
The device is housed in a TO-220-6 Full Pack with formed leads (TO-220F-6L).
It includes current limiting, overload protection, over-temperature protection, and over-voltage protection.
The maximum power dissipation is 50W.
It is an isolated flyback converter.
