| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

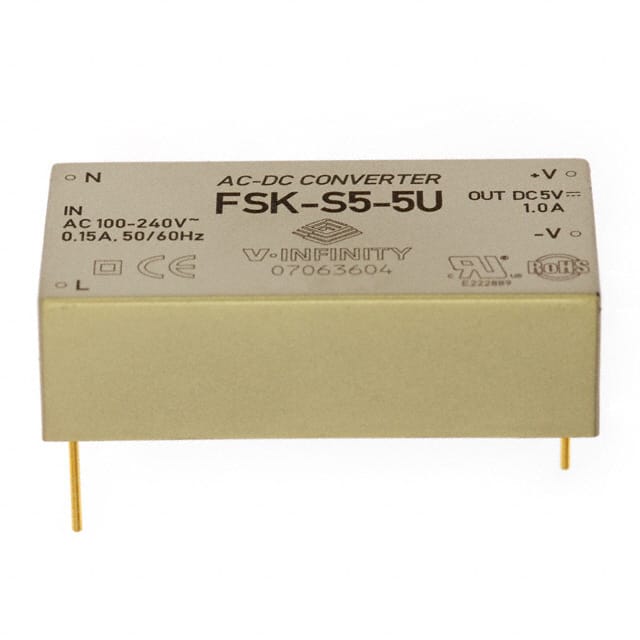

The CUI Inc. FSK-S5-5U is an AC-DC converter designed for board mount applications. It delivers a 5W output power with a nominal 5V output voltage and 1A current capability. This converter boasts a high efficiency of 75% and features a universal input voltage range of 85-264 VAC or 110-340 VDC.
Designed with a compact, encapsulated case, the FSK-S5-5U utilizes surface mounting technology and operates at a fixed 100kHz frequency. It includes essential protection features such as thermal shutdown and output short circuit protection, along with low output ripple and noise. The unit is approved to UL60950, CSA C22.2 NO.60950, CB(IEC 60950), and CE(EN60950 standards.
With a through-hole mounting type and a 5-DIP Module, 4 Leads package, this converter is suitable for various ITE (Commercial) applications. It operates within a temperature range of -20°C to 70°C and comes with a standard 2-year warranty.
85-264 VAC or 110-340 VDC.
5V at 1A.
5-DIP Module with 4 leads, through-hole mounting.
-20°C to 70°C with derating.
Output short circuit protection and thermal shutdown.
3000 VAC between primary and secondary.
50.8mm x 25.4mm x 18.2mm (2.00" x 1.00" x 0.71").
