| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

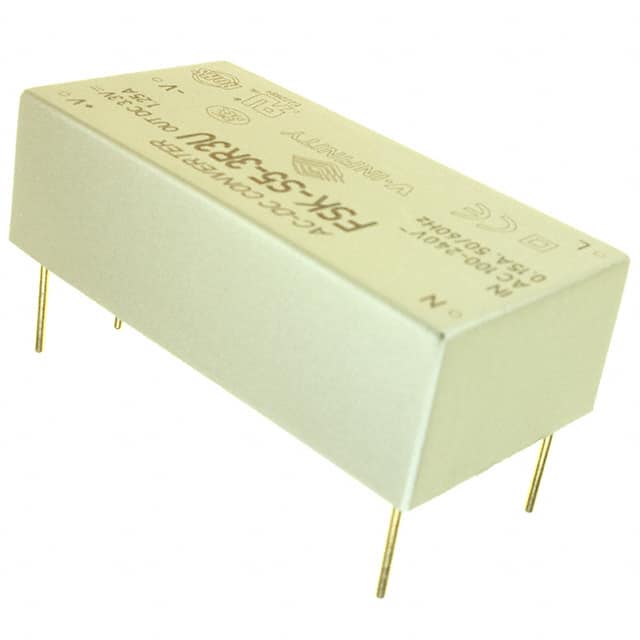

The CUI Inc. FSK-S5-3R3U is an AC-DC converter designed for reliable power conversion in various applications. It offers a fixed output voltage of 3.3V with a maximum current of 1.25A, delivering up to 5W of power.
The converter features a universal input voltage range of 85-264 VAC, making it suitable for global use. It boasts high efficiency, rated at 71%, and a low output ripple and noise of 80 mVp-p. The unit is encapsulated in a compact case and utilizes surface mounting technology.
Key features include thermal shutdown and output short circuit protection for enhanced safety and reliability. The operating temperature range is -20°C to 70°C. The FSK-S5-3R3U is approved to UL60950, CSA C22.2 NO.60950, CB(IEC 60950), and CE(EN60950 standards.
This converter is suitable for ITE (Commercial) applications and is available in a 5-DIP Module, 4 Leads package with Through Hole mounting.
The FSK-S5-3R3U has a fixed output voltage of 3.3V.
The maximum output current for the FSK-S5-3R3U is 1.25A.
The FSK-S5-3R3U has a power rating of 5W.
The FSK-S5-3R3U accepts a universal input voltage range of 85-264 VAC.
The efficiency of the FSK-S5-3R3U is 71%.
The FSK-S5-3R3U operates within a temperature range of -20°C to 70°C.
The FSK-S5-3R3U is approved to UL60950, CSA C22.2 NO.60950, CB(IEC 60950), and CE(EN60950).
