| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

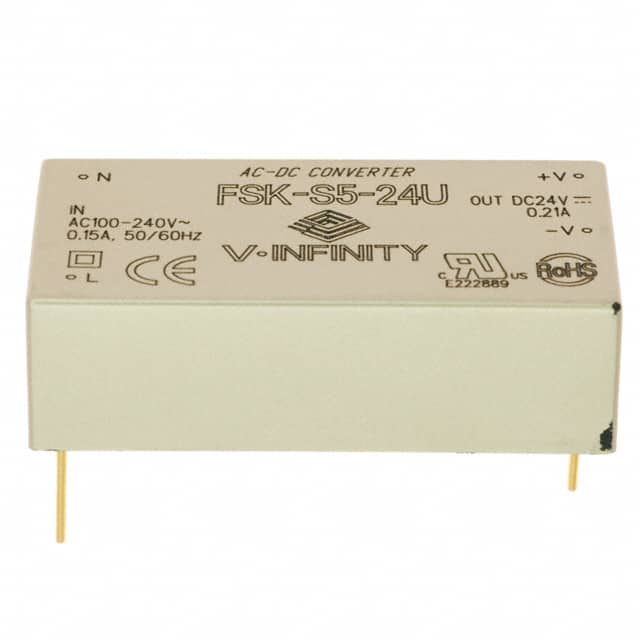

The CUI Inc. FSK-S5-24U is an enclosed AC-DC converter designed for ITE (Commercial) applications. It offers a 24V output voltage at a maximum power of 5W, with a current rating of 210mA. The converter boasts a universal input voltage range of 85-264 VAC and achieves a high efficiency of 77%.
Key electrical specifications include a voltage tolerance of ±2%, ripple and noise of 200 mVp-p, and line and load regulation of ±1%. It operates within a temperature range of -20°C to 70°C and features essential protections like output short circuit and thermal shutdown.
This AC-DC converter is suitable for through-hole mounting and comes in a 5-DIP Module, 4 Leads package. It is approved by CB, CE, CSA, and UL, adhering to standard UL60950-1. The unit is also RoHS3 compliant and has an MTBF of 4.5 x 10^5 hours, backed by a 2-year warranty.
The converter accepts 85-264 VAC or 110-340 VDC input.
5-DIP Module with 4 leads, through-hole mounting.
-20°C to 70°C with derating.
5W at 24V and 0.21A.
3000 VAC.
77% typical.
50.8mm x 25.4mm x 18.2mm.
