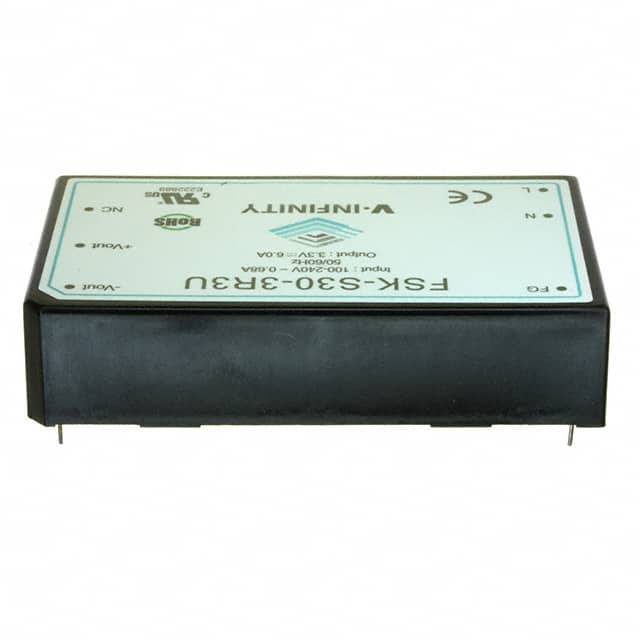

The CUI Inc. FSK-S30-3R3U is an AC-DC converter from the FSK-S30 series, designed for board mounting. It accepts a universal input voltage range of 85-264 VAC or 110-340 VDC.
This converter delivers a stable 3.3V output at a maximum current of 6.0A, providing up to 19.8W of power. It boasts high efficiency, rated at 78%, and features low output ripple and noise (80 mVp-p).
Key features include encapsulated compact case, built-in EMI filter, 100kHz fixed frequency, thermal shutdown, and short circuit protection. The unit is designed for through hole mounting and comes with a 2-year warranty. It is approved by CE, CSA, and UL standards.
With an operating temperature range of -10°C to 60°C, this AC-DC converter is suitable for various industrial and commercial applications requiring reliable power conversion.
The output voltage is 3.3V.
The maximum output current is 6.0A.
The input voltage range is 85-264 VAC or 110-340 VDC.
The power rating is 19.8W.
The efficiency is 78%.
The operating temperature range is -10°C to 60°C.
It is approved by CE, CSA, and UL.
