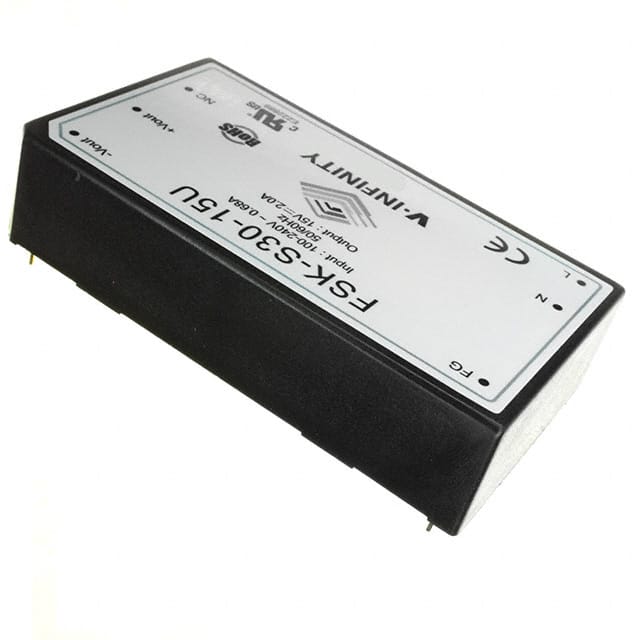

The CUI Inc. FSK-S30-15U is an AC-DC converter from the FSK-S30 series, designed for reliable power conversion. It offers a fixed output voltage of 15V at a maximum current of 2.0A, delivering up to 30W of power. The converter accepts a wide universal input voltage range of 85-264 VAC or 110-340 VDC, making it suitable for global applications.
Key electrical specifications include an efficiency of 83% and a fixed switching frequency of 100kHz. Protection features include output over-current protection with automatic recovery and over-temperature protection at 145°C. The operating temperature range is -10°C to 60°C with derating.
Designed for board mounting, this AC-DC converter utilizes a through-hole package (8-DIP Module, 6 Leads). Its compact dimensions are 94.0mm x 53.0mm x 24.5mm. The unit is approved by CE, CSA, and UL for safety compliance.
This converter is suitable for ITE (Commercial) applications and features built-in EMI filtering, isolated output, and low output ripple and noise.
85-264 VAC or 110-340 VDC.
15V at 2.0A (30W).
83% typical.
Output over-current protection (automatic recovery at >105% rating) and over-temperature protection (shutdown at 145°C).
8-DIP Module, 6 Leads, through-hole mounting. Dimensions: 94.0mm x 53.0mm x 24.5mm.
-10°C to 60°C with derating.
3000 VAC between primary and secondary.
