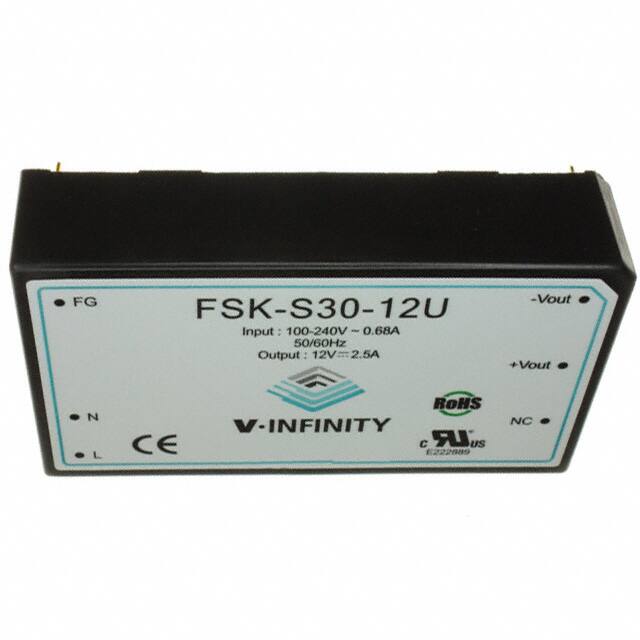

The CUI Inc. FSK-S30-12U is an AC-DC converter designed for board mounting applications. It operates with a universal input voltage range of 85-264 VAC and provides a fixed output voltage of 12V at up to 2.5A, delivering a total output power of 30W.
Key features include high efficiency up to 83%, built-in EMI filter, thermal shutdown, and short circuit protection. The converter is housed in an encapsulated compact case suitable for through-hole mounting.
This series offers isolated outputs and is suitable for ITE (Commercial) applications. It meets safety standards including UL60950, CSA C22.2 NO.60950, and CE(EN60950). The operating temperature range is -10°C to 60°C with derating.
The input voltage range is 85-264 VAC or 110-340 VDC.
It is an 8-DIP module with 6 leads, through-hole mounting.
-10°C to 60°C with derating.
12V nominal output at 2.5A, maximum power 30W.
Output over-current protection at over 105% of rated load with automatic recovery, and over-temperature protection at 145°C.
86% typical.
3000 VAC between primary and secondary.
