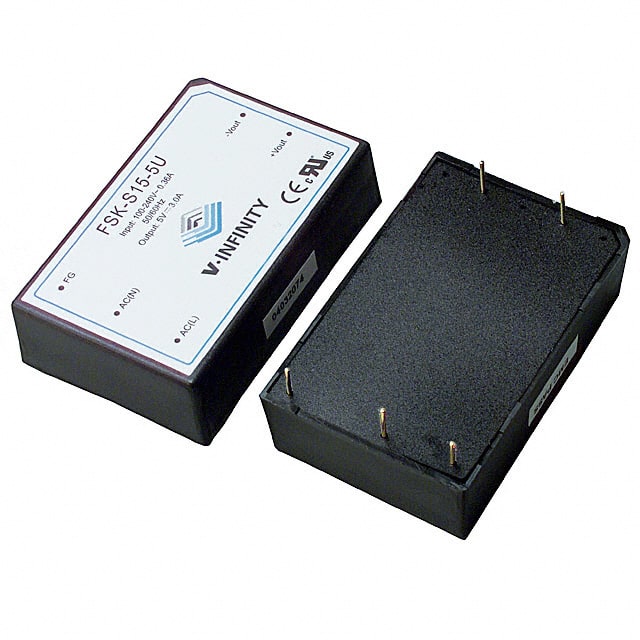

The CUI Inc. FSK-S15-5U is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a single 5V output with a maximum current of 3A, providing a total power of 15W. The converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 75%.
Key electrical specifications include line and load regulation of ±1%. The operating temperature range is -10°C to 60°C with derating. This model is housed in a 7-DIP module package and is designed for through-hole mounting.
Compliance is certified by CB, CE, cUL, and UL. The product adheres to standard number 60950-1. Its dimensions are 70.0mm x 45.0mm x 22.5mm, and it weighs 99.79g.
This AC/DC converter is suitable for various commercial applications requiring a reliable power supply solution.
The FSK-S15-5U provides a 5V output at a maximum current of 3A.
The input voltage range for the FSK-S15-5U is 85 to 264 VAC.
The FSK-S15-5U has a power rating of 15W.
The operating temperature range is -10°C to 60°C, with derating.
The FSK-S15-5U is a 7-DIP Module with 5 leads.
The FSK-S15-5U is approved by CB, CE, cUL, and UL.
