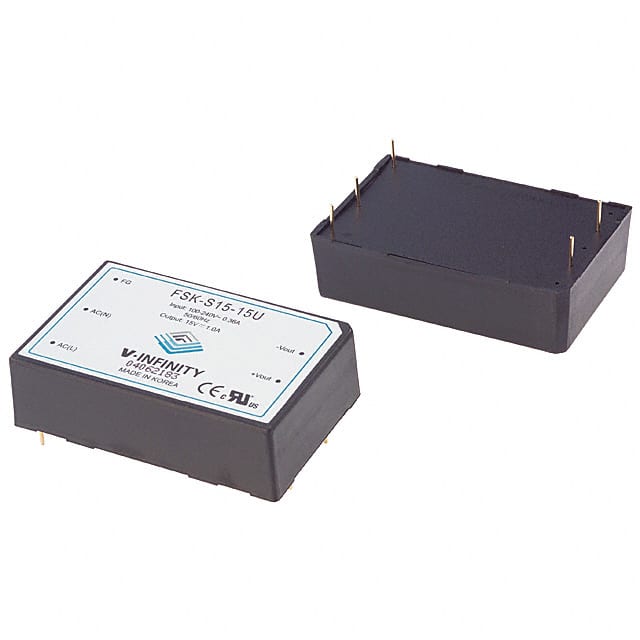

This CUI Inc. FSK-S15-15U is an enclosed AC/DC converter designed for ITE (Commercial) applications. It offers a power output of 15W, with a single output of 15V and 1A current. The converter features a universal input voltage range from 85 to 264 VAC and an efficiency of 78%.
Designed for through-hole mounting, this unit comes in a 7-DIP module package with 5 leads. Its dimensions are 70.0mm in length, 45.0mm in width, and 19.5mm in height. The operating temperature range is -10°C to 60°C, with derating. It is compliant with RoHS3 standards and meets the 60950-1 safety standard.
Key specifications include its enclosed type, universal input feature, and approval by agencies such as CB, CE, cUL, and UL. The operating temperature range and compact dimensions make it suitable for various commercial electronic equipment.
85 ~ 264 VAC
7-DIP Module, 5 Leads
-10°C to 60°C with derating
15V
CB, CE, cUL, UL
78%
Through Hole
