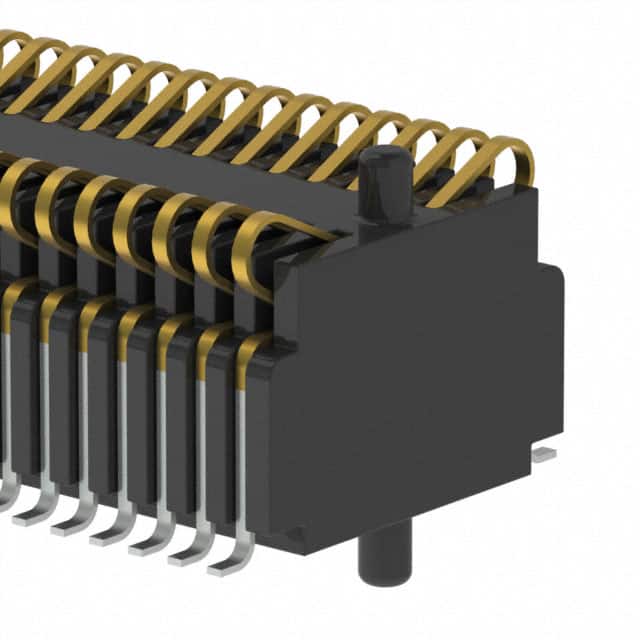

FSI-120-06-L-D-AD-P-TR Stacking compression connector with 40 positions, 2 rows, 1.00mm pitch. Features gold contacts and surface mount design with board guide and pick and place.
Mfr Part #:

FSI-120-06-L-D-AD-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Stacking compression connector with 40 positions, 2 rows, 1.00mm pitch. Features gold contacts and surface mount design with board guide and pick and place.
✓ Total Stock: 4 pcs
$ Price Range: $6.06 - $7.27

FSI-120-06-L-D-AD-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSI-120-06-L-D-AD-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

FSI-120-06-L-D-AD-P-TR Description

Short technical summary and product information.

The FSI-120-06-L-D-AD-P-TR is a stacking compression connector from Samtec Inc. It features 40 positions arranged in 2 rows with a 1.00mm pitch, making it suitable for high-density board-to-board applications. The connector uses surface mount technology and has a height above board of 0.236 inches (6.00mm). Contacts are finished with 10.0 microinches (0.25µm) of gold for reliable conductivity. The part includes board guide, mating guide, and pick and place features for automated assembly. The connector is RoHS3 compliant and REACH unaffected, though compliance data is unverified. It is packaged in tape and reel for surface mount processing. This connector is designed for mezzanine or stacking interconnects where space is constrained.

FSI-120-06-L-D-AD-P-TR Quick Information

Product Type: Stacking Compression Connector
Series: FSI
Canonical Name: Stacking Compression Connector, 40 Position, 2 Row, 1.00mm Pitch, SMD, Gold
Subcategory: Mezzanine (Board to Board) Connector Arrays

FSI-120-06-L-D-AD-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSI-120-06-L-D-AD-P-TR Estimated Pricing

Qty Low High
175+ $7.27 $7.27
350+ $7.25 $7.25
875+ $6.20 $6.20
1,925+ $6.06 $6.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

FSI-120-06-L-D-AD-P-TR Features

  • 40 positions arranged in 2 rows.
  • 1.00mm pitch for high density.
  • Gold contact finish of 10 microinches.
  • Surface mount with 0.236 inch height.
  • Includes board guide and pick and place.

FSI-120-06-L-D-AD-P-TR Applications

  • Used in high-density mezzanine interconnects.
  • Ideal for stacking PCB assemblies.
  • Supports automated surface mount assembly.
  • Suitable for compact electronic devices.

FSI-120-06-L-D-AD-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

40 positions.

What is the pitch of this connector?

1.00mm (0.039 inches).

What is the mounting type?

Surface Mount.

What is the contact finish?

Gold with 10.0 microinches (0.25µm) thickness.

What is the height above board?

0.236 inches (6.00mm).

What features does this connector include?

Board Guide, Mating Guide, and Pick and Place.

How many rows does it have?

2 rows.
